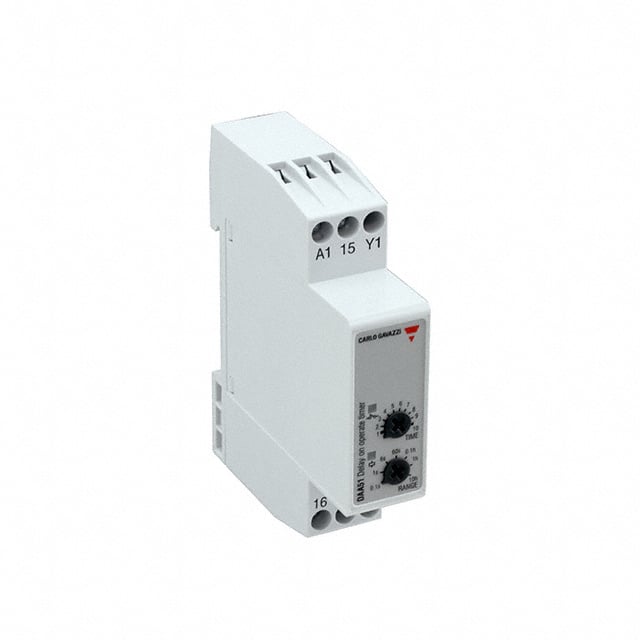

DAA51CM24 The Carlo Gavazzi DAA51CM24 is an On-Delay timer relay featuring a SPDT output and a wide supply voltage range of 12-240 VAC/VDC. It offers a time range from 0.1 seconds to 100 hours.
Mfr Part #:

DAA51CM24

Available from 1 distributors
Mfr Name: Carlo Gavazzi
Carlo Gavazzi
The Carlo Gavazzi DAA51CM24 is an On-Delay timer relay featuring a SPDT output and a wide supply voltage range of 12-240 VAC/VDC. It offers a time range from 0.1 seconds to 100 hours.
✓ Total Stock: 5 pcs

DAA51CM24 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DAA51CM24 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit
Contact Rating @ Voltage
Delay Time
Function
Material
Mounting Type
Operating Temperature
Relay Type
Storage Temperature
Tape & Reel
Termination Style
Timing Adjustment Method
Timing Initiate Method
Voltage
Weight
View Similar Products (0)

DAA51CM24 Description

Short technical summary and product information.

The Carlo Gavazzi DAA51CM24 is a versatile On-Delay timer relay designed for industrial automation applications. It features a single pole double throw (SPDT) relay output capable of switching 5A at 250VAC.



The timer offers a broad selectable time range from 0.1 seconds up to 100 hours, with knob selection and adjustable time setting. It operates with a wide supply voltage range of 12 to 240 VAC or VDC, making it suitable for various power systems.



Designed for easy integration, the DAA51CM24 mounts on a standard 17.5 mm wide DIN-rail and utilizes screw terminals for secure connections. It includes LED indicators for power supply and relay status, aiding in operational monitoring. The operating temperature range is -20°C to +60°C.

DAA51CM24 Quick Information

Product Type: Time Delay Relay
Canonical Name: Carlo Gavazzi DAA51CM24 Delay on Operate Timer
Subcategory: On-Delay Timer

DAA51CM24 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DAA51CM24 Features

  • On-Delay function with 0.1s to 100h time range.
  • SPDT relay output rated for 5A at 250VAC.
  • Wide supply voltage: 12-240 VAC/VDC.
  • 17.5 mm DIN-rail mountable housing.
  • Automatic start with knob adjustable settings.

DAA51CM24 Applications

  • Ideal for sequential control operations.
  • Used in motor control circuits.
  • Suitable for lighting control systems.
  • Applicable in process automation.

DAA51CM24 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the Carlo Gavazzi DAA51CM24?

The supply voltage range is 12 to 240 VAC/VDC.

What is the contact rating of the DAA51CM24 timer relay?

The contact rating is 5A at 250VAC for AC1 loads.

What is the time range available on the DAA51CM24?

The time range is selectable from 0.1 seconds to 100 hours.

How is the DAA51CM24 mounted?

It is designed for DIN-rail mounting.

What is the operating temperature range for this timer relay?

The operating temperature range is -20°C to +60°C.
