| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Interface | |
| Lead Spacing | |
| Operating Voltage | |
| Power Consumption | |
| Supplier Device Package |

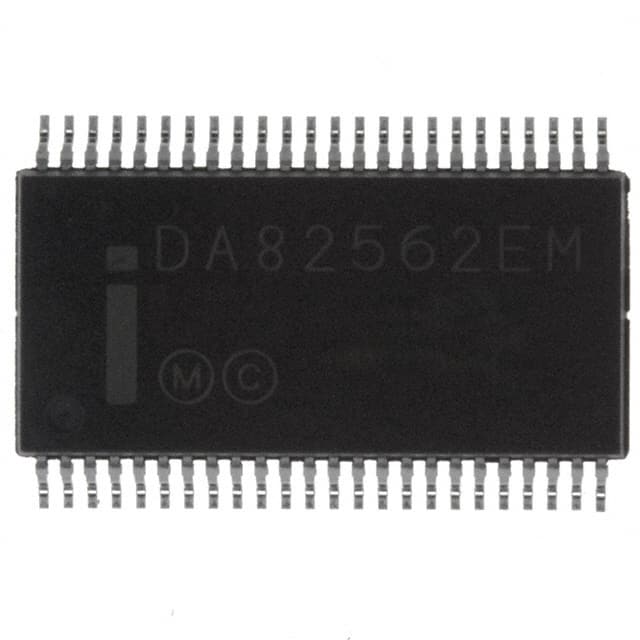

The Intel DA82562EM is part of the 82562 family of Platform LAN Connect (PLC) devices. These controllers combine 10BASE-T and 100BASE-TX physical layer capabilities, making them a core component for integrated networking in Intel I/O Controller Hub (ICH2/3/4) based platforms. The device fully complies with the IEEE 802.3/802.3u standard and supports IEEE 802.3u Auto-Negotiation and IEEE 802.3x Full Duplex Flow Control.
This 32-bit PCI device features enhanced scatter-gather bus mastering capabilities for high-speed data transfers and offloads communications tasks from the system CPU. It includes large transmit and receive FIFOs for enhanced performance. Target applications include LAN on Motherboard (LOM) and Communications and Networking Riser (CNR) form factors, as well as embedded and PC applications requiring reliable 10/100 Mbps LAN capabilities.
The DA82562EM is supplied in a 48-SSOP package. It operates at 3.3V and features low power consumption, less than 300 mW in active transmit mode and less than 50 mW in "unplugged mode". Additional hardware features include digital adaptive equalization, link status interrupt capability, 3-port LED support, and diagnostic loopback mode.
The Intel DA82562EM supports 10BASE-T and 100BASE-TX standards.
The DA82562EM is supplied in a 48-SSOP package.
The DA82562EM operates at 3.3 V.
Yes, the DA82562EM supports IEEE 802.3u Auto-Negotiation.
The power consumption is less than 300 mW in active transmit mode.
