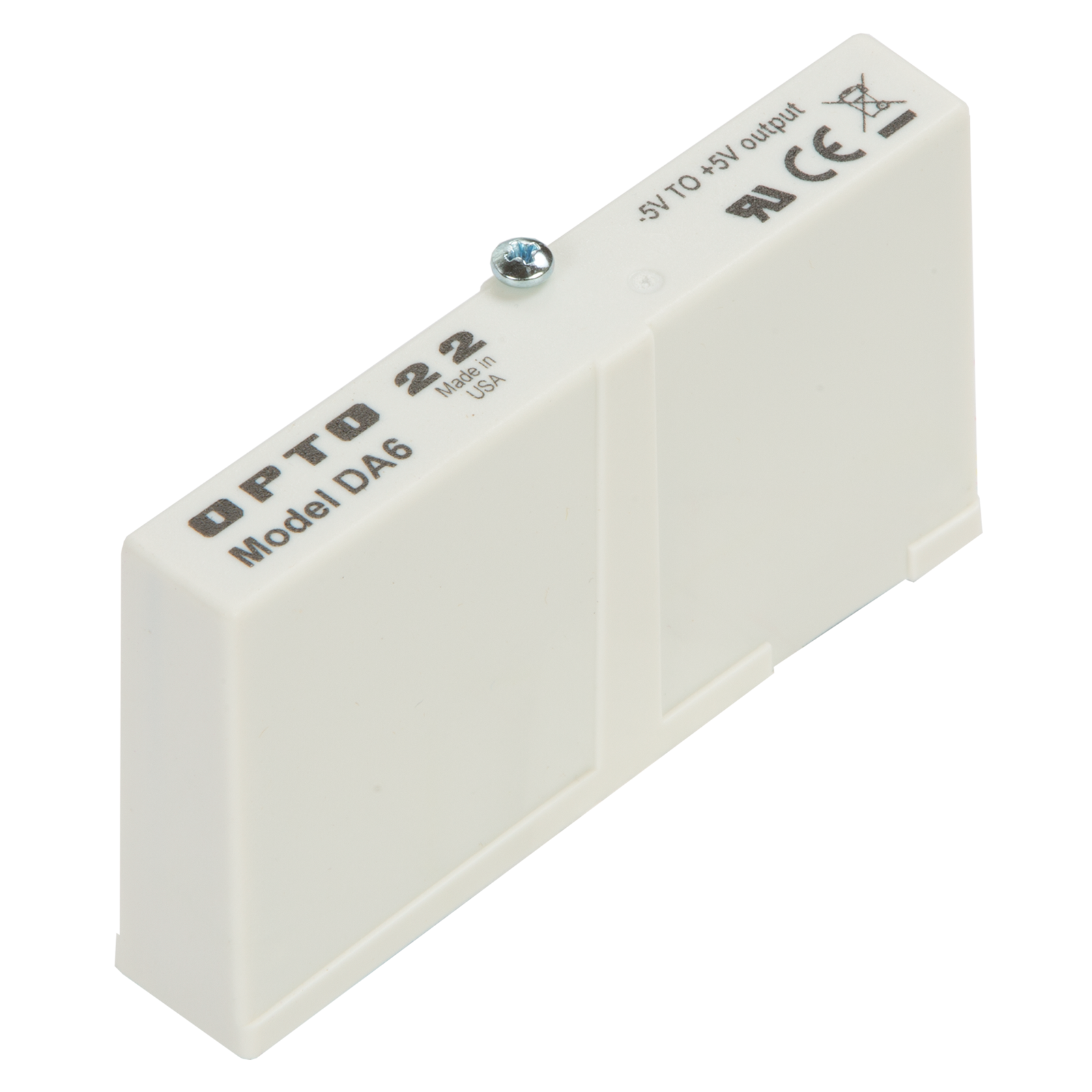

DA6 The Opto 22 DA6 is an analog output module providing a single channel of optically-isolated digital-to-voltage conversion. It offers an output voltage range of -5 to +5 VDC.

Mfr Part #:

DA6

Mfr Name: Opto 22

The Opto 22 DA6 is an analog output module providing a single channel of optically-isolated digital-to-voltage conversion. It offers an output voltage range of -5 to +5 VDC.

✓ Total Stock: 411 pcs

$ Price Range: $255.00

DA6 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	411 pcs On Request	411 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

DA6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Opto 22
Accuracy	±10 mV
Isolation	4,000 Vrms (Transient)
Output Current	70 mA
Output Voltage	-5 to +5 VDC
Resolution	12 bits
Storage Temperature	-25 °C to 85 °C

View Similar Products (0)

DA6 Description

Short technical summary and product information.

The Opto 22 DA6 is a voltage output analog module designed for industrial automation and control applications. It provides a single channel of optically-isolated digital-to-voltage conversion, ensuring reliable signal transmission.

The module features an output voltage range of -5 to +5 VDC with an accuracy of ±10 mV. It boasts a 12-bit resolution, allowing for precise control, and a fast output response time of 3 ms for full-scale step changes. The isolation rating is 4,000 Vrms (Transient) for input-to-output, input-to-analog supply, enhancing system safety and preventing ground loops.

Operating within a temperature range of 0 °C to 70 °C, the DA6 is suitable for various industrial environments. It requires specific power conditions, drawing 20 mA at +15 (+/- 0.25) VDC and 10 mA at -15 (+/- 0.25) VDC. This module is part of the G1 I/O family and mounts on a G1 analog mounting rack.

Agency approvals include UL, CE, and UKCA, indicating compliance with relevant safety and performance standards. The DA6 is designed for applications requiring accurate and isolated voltage signal generation.

DA6 Quick Information

Product Type: Analog Output Module

Series: G1 I/O family

Canonical Name: Opto 22 DA6 Analog Output Module

Subcategory: Voltage Output

DA6 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

DA6 Estimated Pricing

Qty	Low	High
1+	$255.00	$255.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

DA6 Features

Single channel optically-isolated voltage output.
Output voltage range of -5 to +5 VDC.
High accuracy with ±10 mV typical.
12-bit resolution for precise control.
4,000 Vrms transient isolation rating.

DA6 Applications

Industrial automation control systems.
Signal conditioning and conversion.
Process control instrumentation.
Data acquisition systems.

DA6 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the output voltage range of the DA6?

The DA6 provides a programmable output voltage range of -5 to +5 VDC.

What is the accuracy of the DA6?

The DA6 has an accuracy of ±10 mV.

What is the output current capability?

The DA6 can deliver up to 70 mA output current.

What is the resolution of the DA6?

The DA6 has a resolution of 12 bits.

What isolation does the DA6 provide?

The DA6 provides 4,000 Vrms transient isolation.

What is the operating temperature range?

The DA6 operates from 0 °C to 70 °C.
