| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Average Rectified Current | |
| Capacitance @ Vr, F | |
| Current | |
| Forward Voltage | |
| Junction Capacitance | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Repetitive Peak Reverse Voltage | |
| Reverse Recovery Time | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage |
The DA2JF8100L is a standard recovery rectifier diode from Panasonic Electronic Components, designed for general purpose rectification and switching applications. It features a maximum repetitive peak reverse voltage (VRRM) of 800V and a maximum average rectified current (Io) of 200mA, making it suitable for low-current high-voltage circuits.
Key electrical characteristics include a maximum forward voltage of 2.5V at 200mA, a typical reverse recovery time of 45ns, and a typical junction capacitance of 0.6pF at 0V and 1MHz. The device operates over a junction temperature range of -40°C to 150°C.

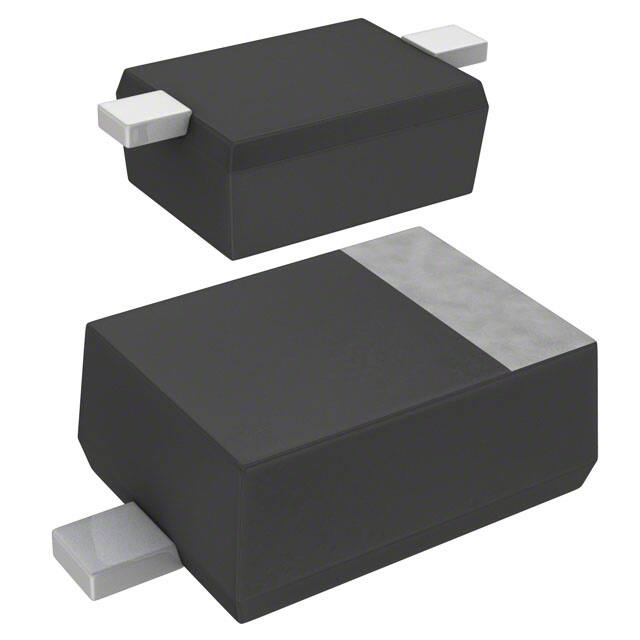

The diode is housed in a surface mount SC-90 (SOD-323F) package with the supplier device package designation SMini2-F5-B. It is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited).
The maximum VRRM is 800V.
The maximum average rectified current is 200mA.
The maximum forward voltage is 2.5V at 200mA.
The typical reverse recovery time is 45ns.
It comes in a surface mount SC-90 (SOD-323F) package, also known as SMini2-F5-B.
