| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Utilized IC | |
| Voltage |

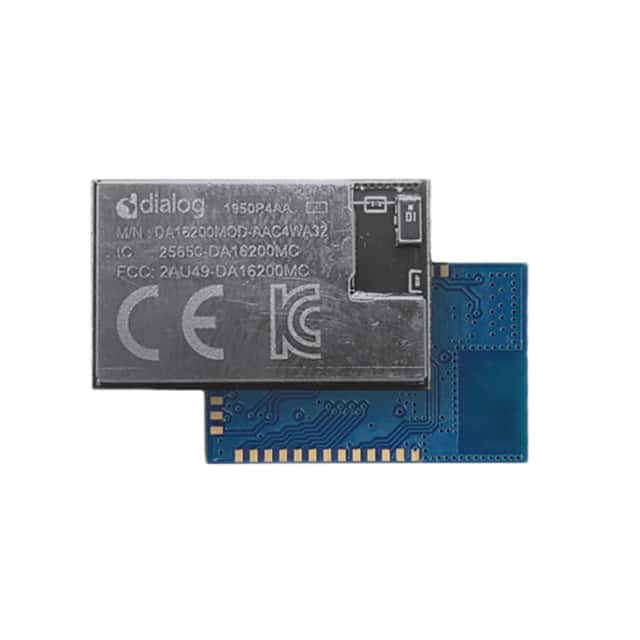

This Renesas DA16200MOD-AAC4WA32 is a WiFi transceiver module designed for wireless communication applications. It integrates a chip antenna for compact design and supports the 802.11b/g/n protocols, offering data rates up to 54Mbps.
The module operates with a voltage range of 2.1V to 3.6V and consumes between 28.1mA and 37.4mA of current. It features a sensitivity of -98.5dBm and an output power of 19dBm, making it suitable for various RF applications.
Key electrical specifications include CCK, DSSS, and OFDM modulation, along with 256kB ROM and 512kB SRAM memory. The module supports multiple serial interfaces such as GPIO, I²C, I²S, PWM, SDIO, SPI, and UART, providing flexibility in system integration.
Packaged in a 37-SMD module format, it is designed for surface mounting. The operating temperature range is -40°C to 85°C. This module is RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 2.1V to 3.6V.
The package type is a 37-SMD Module.
The operating temperature range is -40°C to 85°C.
