| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,655 pcs
|
4655 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| GPIO | |
| Lead Spacing | |
| Memory Size | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage |
The Renesas DA14580-01UNA is a Bluetooth Low Energy 4.2 System-on-Chip (SoC) that integrates both a radio transceiver (TxRx) and a microcontroller (MCU). This device operates in the 2.4GHz frequency band, offering a receiver sensitivity of -93dBm and an output power of -1dBm.
With a voltage range of 2.35V to 3.3V and a typical operating current of 3.7mA, the DA14580-01UNA is designed for low-power applications. It features 14 GPIO pins and supports serial interfaces including I²C, SPI, and UART. Memory options include 32kB OTP, 84kB ROM, and 50kB SRAM.

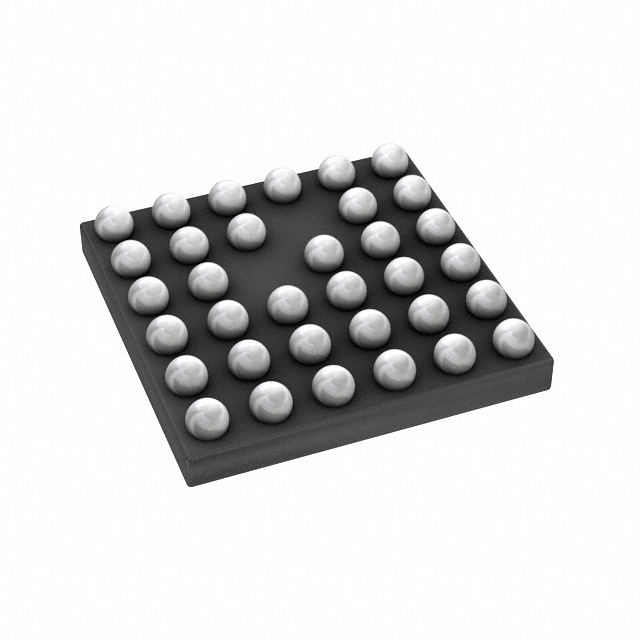

The component is housed in a compact 34-UFBGA, WLCSP package, suitable for surface mount applications. It operates within a temperature range of -40°C to 85°C. The DA14580-01UNA is noted as 'Not Recommended for New Designs'.
This IC is part of Renesas' SmartBond family, providing a solution for wireless connectivity in various consumer and industrial electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.80 | $1.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.35V to 3.3V.
It is available in a 34-UFBGA, WLCSP package.
The operating temperature range is -40°C to 85°C.
The RoHS status is RoHS3 Compliant.
The receiver sensitivity is -93dBm.
It supports Bluetooth v4.1, I²C, SPI, and UART.
