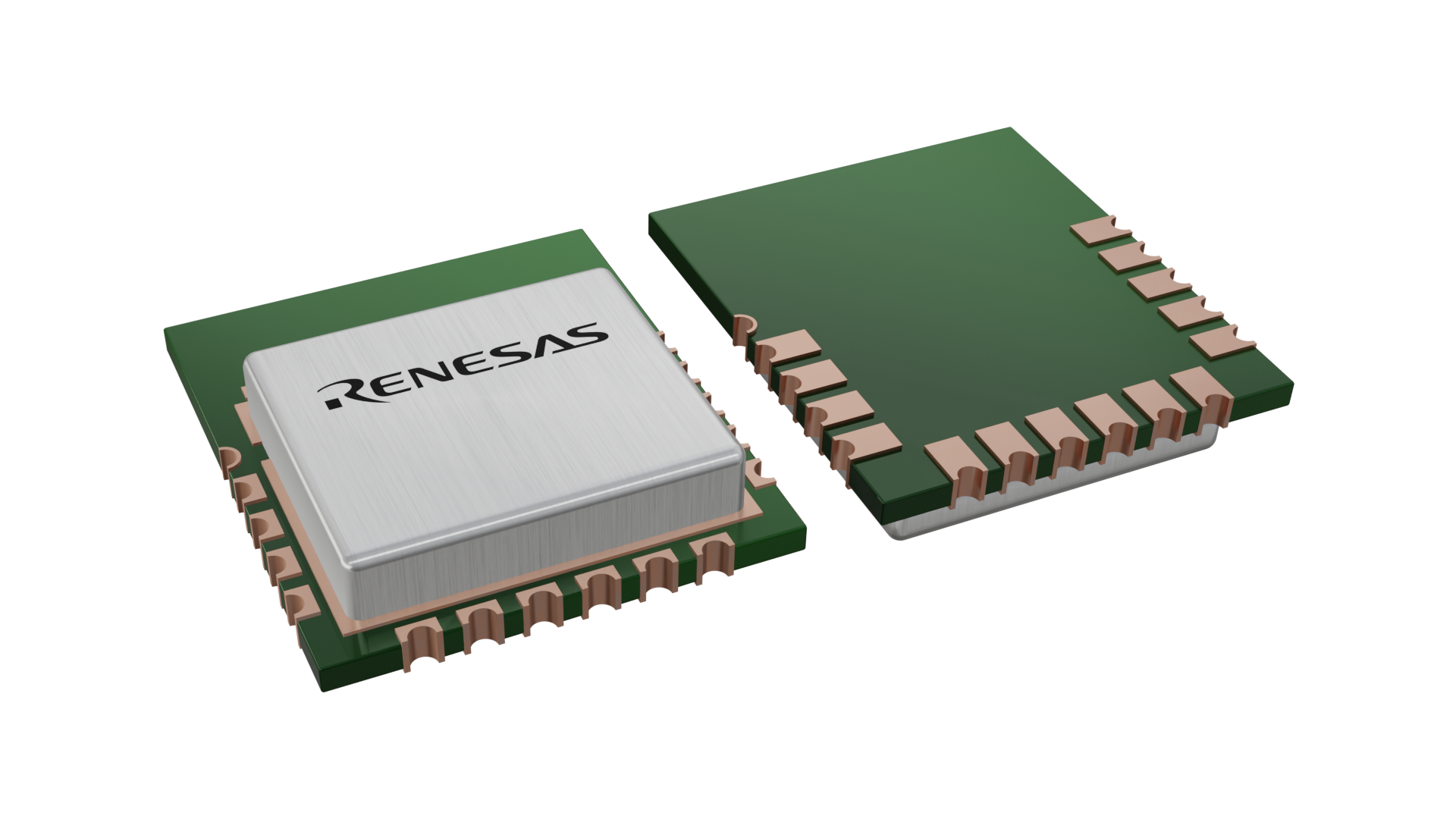

DA14531MOD-00F01002 The Renesas DA14531MOD-00F01002 is a Bluetooth Low Energy 5.1 module. It operates with a voltage range of 1.8V to 3.3V and offers a sensitivity of -93dBm.
Mfr Part #:

DA14531MOD-00F01002

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas DA14531MOD-00F01002 is a Bluetooth Low Energy 5.1 module. It operates with a voltage range of 1.8V to 3.3V and offers a sensitivity of -93dBm.
✓ Total Stock: 510 pcs
$ Price Range: $2.59

DA14531MOD-00F01002 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
510 pcs
On Request
510 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DA14531MOD-00F01002 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Antenna Type
Current
Frequency
Memory Size
Mounting Type
Operating Temperature
Power
Protocol
RF Family
Sensitivity
Serial Interfaces
Utilized IC
Voltage
View Similar Products (0)

DA14531MOD-00F01002 Description

Short technical summary and product information.

The Renesas DA14531MOD-00F01002 is a SmartBond TINY Bluetooth Low Energy module supporting Bluetooth v5.1.



This module operates within a voltage range of 1.8V to 3.3V and consumes approximately 2mA of current. It features an integrated trace antenna and offers a sensitivity of -93dBm with an output power of 2.2dBm. The module includes various serial interfaces such as ADC, GPIO, I²C, SPI, and UART, utilizing the DA14531 IC.



Designed for surface mounting, the module comes in a 16-SMD package. It operates across a temperature range of -40°C to 85°C. The memory configuration includes 128kB Flash, 144kB ROM, and 48kB RAM.

DA14531MOD-00F01002 Quick Information

Product Type: RF Transceiver Module
Canonical Name: DA14531MOD-00F01002 SmartBond TINY Bluetooth Low Energy Module
Subcategory: Bluetooth Low Energy Module

DA14531MOD-00F01002 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DA14531MOD-00F01002 Estimated Pricing

Qty Low High
1+ $2.59 $2.59

Estimated market price range - modelled values for guidance only, not live distributor offers.

DA14531MOD-00F01002 Features

  • Bluetooth Low Energy 5.1 module
  • Integrated trace antenna
  • Wide voltage range 1.8V to 3.3V
  • High sensitivity of -93dBm
  • Surface mount 16-SMD package

DA14531MOD-00F01002 Applications

  • Ideal for IoT devices
  • Suitable for wireless sensors
  • Used in wearable technology
  • Enables smart home applications

DA14531MOD-00F01002 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the DA14531MOD-00F01002 module?

The operating voltage range is 1.8V to 3.3V.

What is the sensitivity of the DA14531MOD-00F01002 module?

The sensitivity is -93dBm.

What protocol does the DA14531MOD-00F01002 module support?

The module supports Bluetooth v5.1.

What are the available serial interfaces on this module?

The available serial interfaces are ADC, GPIO, I²C, SPI, and UART.

What is the operating temperature range for this module?

The operating temperature range is -40°C to 85°C.

What type of antenna does the DA14531MOD-00F01002 module use?

The module features an integrated trace antenna.
