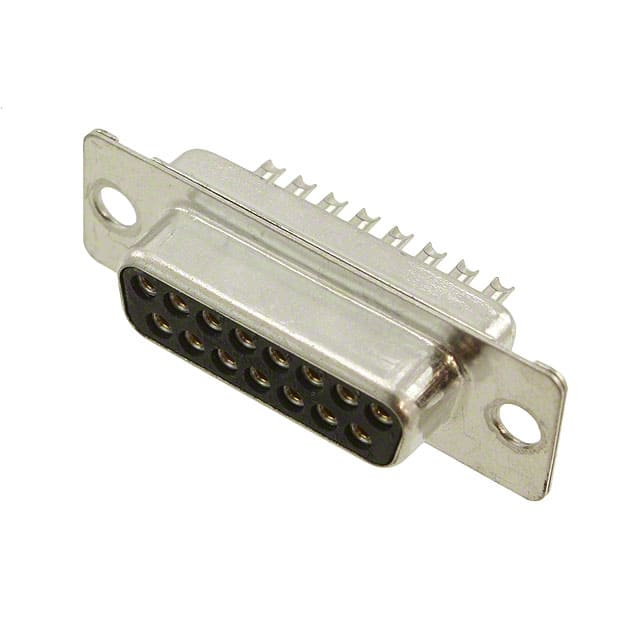

The DA-15S-A197 is a standard D-Subminiature receptacle connector from ITT Cannon's ORIGINAL D series. It features 15 female socket contacts arranged in 2 rows within a size DA shell. Contacts are machined from copper alloy with gold flash finish (Performance Class 3) and are terminated via solder cups, supporting wire gauges from 20 to 28 AWG. The connector is designed for panel mounting using unthreaded flanges with a mounting hole diameter of 3.05 mm (0.120 inches). The steel shell with tin finish provides durability and EMI shielding. The insulator is made of thermoplastic PCT with UL94 V-0 flammability rating. Electrical ratings include a current rating of 7.5 A at 85°C and 5 A at 105°C, a dielectric withstanding voltage of 1200 VAC at sea level, and a maximum contact resistance of 10 mΩ. The operating temperature range is -55°C to +125°C. The part is rated for 50 mating cycles and passes a 20-hour salt spray test. This connector is suitable for a wide range of industrial, aerospace, and data communication applications requiring reliable signal connections.
The DA-15S-A197 has 15 positions arranged in 2 rows.
The current rating is 7.5 A at 85°C and 5 A at 105°C.
The connector uses panel mount with unthreaded flanged housing and 3.05 mm through holes.
The operating temperature range is -55°C to +125°C.
The solder cup termination accepts wire gauges from 20 to 28 AWG.
The dielectric withstanding voltage is 1200 VAC at sea level.
RoHS compliance is listed as RoHS3 compliant.
