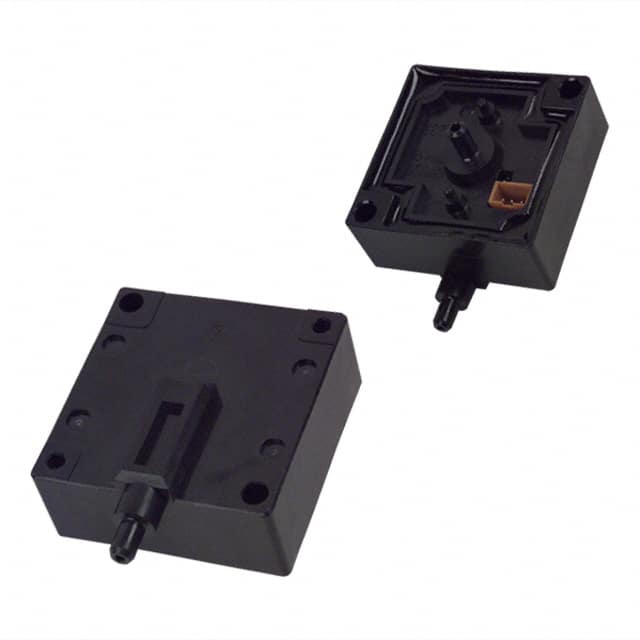

The Omron D8M-D1 is a solid state pressure sensor designed for various applications requiring precise pressure measurement. It features a vented gauge pressure type and operates within a range of 0 to 0.85 PSI (0 to 5.88 kPa), with a maximum pressure rating of 8.53 PSI (58.8 kPa).
This sensor provides a pulse count output signal, specifically 1 pulse per 9.81 Pa, and operates with a power supply voltage between 2.2V and 3.4VDC. The accuracy is rated at ±2%. The port size is 0.13" (3.3mm) with a barbless style, suitable for direct connection.
Packaged in a compact 3-SIP module, the D8M-D1 is designed for through-hole mounting and features a cable termination style. It is suitable for board mount applications and operates within an ambient temperature range of -30°C to 70°C. The chemical-resistant plastic body ensures durability in various environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The D8M-D1 operates within a voltage range of 2.2 to 3.4 VDC.
The D8M-D1 measures pressures from 0 to 5.88 kPa.
The D8M-D1 provides a PWM output signal.
The sensor has an accuracy of ±2%.
The port style is barbless.
The port size is 3.3mm (0.13 inches).
The operating temperature range is from -30°C to 70°C.
