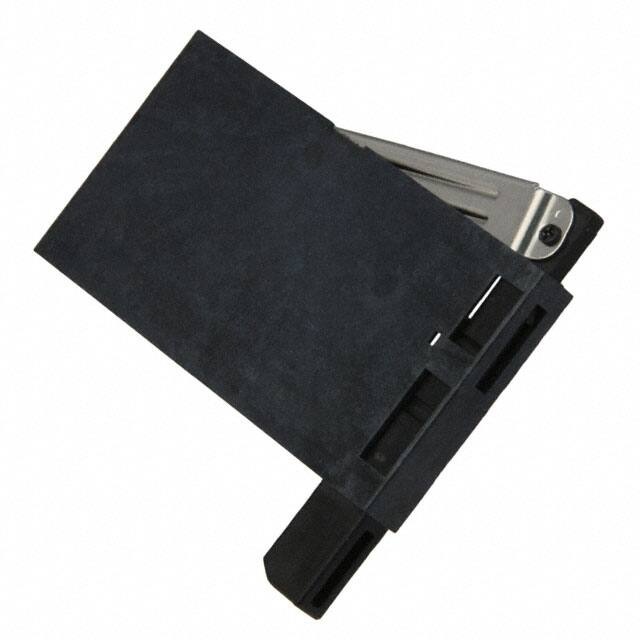

The D7E50-7316-03 is a 50-position CompactFlash Type I card header from 3M. It features a 0.635mm pitch, snap-in mounting, and a right ejector for easy card insertion and removal. The connector is designed for use with CompactFlash Type I cards and includes a push-in, push-out mechanism.
Electrical specifications include a current rating of 0.5A per contact, insulation resistance greater than 1×10^9 ohms at 500Vdc, and withstanding voltage of 500Vrms at sea level. The insulator is made of Liquid Crystal Polymer (LCP) with UL 94V-0 flammability rating. Contacts are copper alloy with gold flash over palladium nickel in the wiping area and tin-lead on solder tails.
Environmental operating temperature range is -55°C to +85°C. The board height above board is 0.280 inches (7.10mm). The connector meets CFA standards and offers a retainer clip option for stability in high-vibration applications. Note: The datasheet indicates surface mount, while the existing database lists snap-in mounting; verify mounting type for your design.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.38 | $7.38 |
| 10+ | $6.27 | $6.27 |
| 25+ | $5.87 | $5.87 |
| 50+ | $5.59 | $5.59 |
| 100+ | $5.33 | $5.33 |
| 300+ | $4.93 | $4.93 |
| 500+ | $4.75 | $4.75 |
| 1,000+ | $4.53 | $4.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions.
0.635 mm.
0.5 A.
Snap-In (note: datasheet suggests surface mount; verify).
-55°C to +85°C.
>1×10^9 Ω at 500 Vdc.
UL 94V-0.
