| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Features | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Type | |
| Voltage Rating |

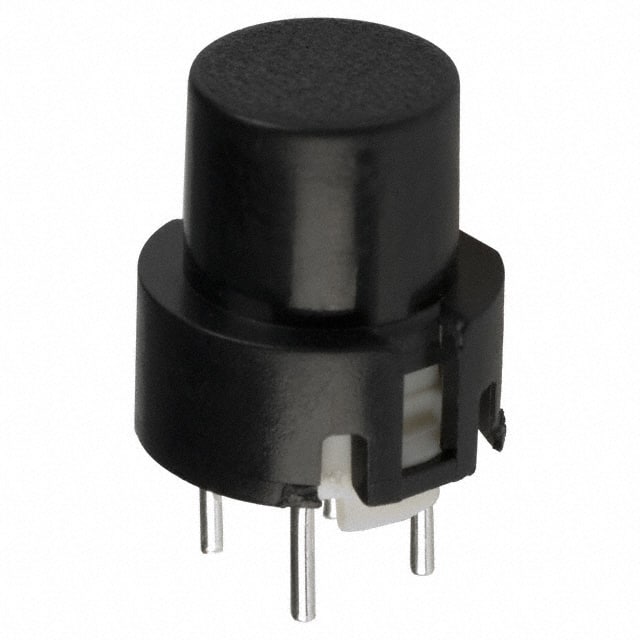

This C&K Components D6 Series keyswitch, model D6R90 F1 LFS, is a black, SPST-NO momentary switch designed for through-hole mounting. It provides positive and smooth tactile feedback, making it suitable for applications requiring clear user input.
The switch features PC pin termination and a non-illuminated design. Its electrical specifications include a maximum switching voltage of 32V DC and a maximum switching current of 100mA DC for non-illuminated versions. The operating life varies by version, with F1 rated for 250,000 operations and F2 for 100,000 operations at maximum switching power.
Environmental specifications include an IP40 sealing rating and an operating temperature range of -20°C to 85°C. The switch is RoHS3 compliant and compatible with lead-free soldering profiles. Typical applications for this type of switch include video equipment, electronic games, and appliances.
With a minimum distance between button centers of 12.7mm, this keyswitch is designed for reliable performance in various electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The non-illuminated version has a maximum switching voltage of 32 V DC.
The operating temperature range for the non-illuminated version is -20°C to 85°C.
Yes, the RoHS Status is RoHS3 Compliant.
The contact arrangement is SPST-NO (Single Pole Single Throw - Normally Open).
The maximum switching current for the non-illuminated version is 100 mA DC.
The termination style is PC Pin.
