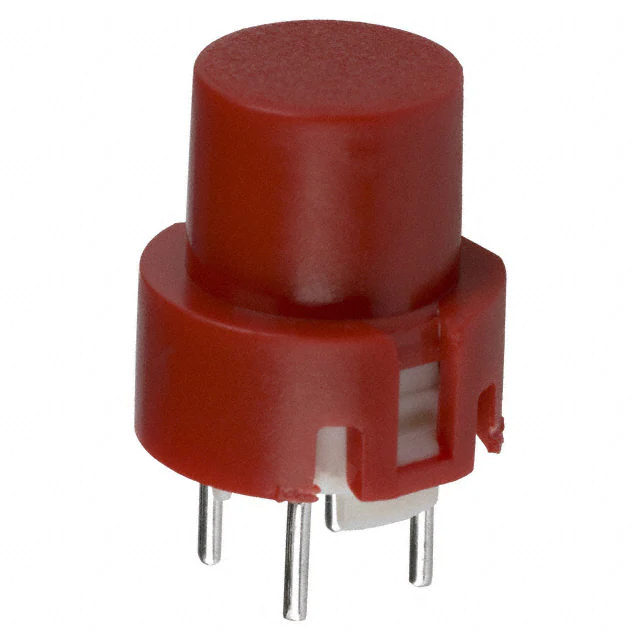

The C&K Components D6R40 F1 LFS is a momentary pushbutton switch from the D6 series, designed for applications requiring reliable switching. This keyswitch features a Single Pole Single Throw Normally Open (SPST-NO) contact arrangement and is rated for 100mA at 32V DC.
With a focus on user experience, this switch provides positive and smooth tactile feedback. It is designed for through-hole mounting and utilizes PC pin termination for secure connections on a PCB. The operating temperature range for non-illuminated versions is -20°C to 85°C, while illuminated versions operate between -20°C to 60°C.
Key specifications include a maximum switching power of 3 VA (non-illuminated) and 0.35 VA (illuminated), with a contact resistance of ≤100 mΩ (non-illuminated) and ≤200 mΩ (illuminated). The switch offers a mechanical life of up to 250,000 operations for version F1 under maximum switching power conditions.
This RoHS 3 compliant component is suitable for various applications including video equipment, electronic games, and appliances. The D6 series offers a wide variety of colors and styles, with illuminated versions also available.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum switching voltage for the D6R40 F1 LFS switch is 32 V DC for non-illuminated versions.
The operating temperature range for non-illuminated versions of this switch is -20°C to 85°C.
Yes, the D6R40 F1 LFS switch is RoHS 3 compliant.
The D6R40 F1 LFS switch is delivered in boxes containing 2,500 pieces.
