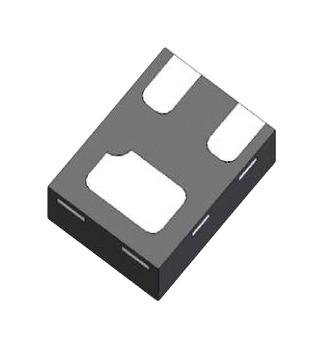

D5V0F2U3LP08-7B TVS diode array for ESD protection, 2 channels, 5.5V standoff, 12V clamping, 0.5pF capacitance, in X2-DFN0806-3 package.
Mfr Part #:

D5V0F2U3LP08-7B

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
TVS diode array for ESD protection, 2 channels, 5.5V standoff, 12V clamping, 0.5pF capacitance, in X2-DFN0806-3 package.
✓ Total Stock: 10,000 pcs
$ Price Range: $0.05 - $0.36

D5V0F2U3LP08-7B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request 1928+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

D5V0F2U3LP08-7B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Capacitance @ Frequency
Current
Halogen Free
Mounting Type
Operating Temperature
Power Dissipation
Power Line Protection
SVHC Present
Storage Temperature
Supplier Device Package
Tape & Reel
Tape Width
Termination
Type
Unidirectional Channels
Voltage
Weight
View Similar Products (0)

D5V0F2U3LP08-7B Description

Short technical summary and product information.

The D5V0F2U3LP08-7B from Diodes Incorporated is a 2-channel low capacitance TVS diode array designed to protect sensitive electronics from electrostatic discharge (ESD). It provides ESD protection per IEC 61000-4-2 standard with ±15kV air and contact discharge ratings.



Key electrical specifications include a reverse standoff voltage of 5.5V maximum, a minimum breakdown voltage of 6V, and a maximum clamping voltage of 12V. The peak pulse current is 1.5A (8/20µs waveform) with a typical capacitance of 0.5pF at 1MHz. The device is rated for power dissipation of 250mW and operates over a temperature range of -55°C to 150°C.



The device is housed in an ultra-small X2-DFN0806-3 surface mount package with a low profile of 0.04mm maximum. It is totally lead-free, RoHS compliant, halogen and antimony free, and has a moisture sensitivity level of 1. Typical applications include cellular handsets, portable electronics, and computers.

D5V0F2U3LP08-7B Quick Information

Product Type: TVS Diode Array
Canonical Name: TVS Diode Array 2-Channel 5.5V 12Vclamp X2-DFN0806-3
Subcategory: ESD Protection Diode Array

D5V0F2U3LP08-7B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free

D5V0F2U3LP08-7B Estimated Pricing

Qty Low High
1+ $0.36 $0.36
10+ $0.22 $0.22
100+ $0.14 $0.14
500+ $0.10 $0.10
1,000+ $0.08 $0.08
2,500+ $0.08 $0.08
5,000+ $0.07 $0.07
10,000+ $0.06 $0.06
20,000+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

D5V0F2U3LP08-7B Features

  • Provides ESD protection up to ±15kV.
  • Low capacitance of 0.5pF typical.
  • Two channels of ESD protection.
  • Ultra-small X2-DFN0806-3 package.
  • RoHS and halogen-free compliant.

D5V0F2U3LP08-7B Applications

  • Ideal for cellular handset ESD protection.
  • Used in portable electronics and computers.
  • Protects high-speed data lines.
  • Suitable for compact portable devices.

D5V0F2U3LP08-7B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the reverse standoff voltage of D5V0F2U3LP08-7B?

5.5V maximum.

What is the minimum breakdown voltage?

6V minimum.

What is the clamping voltage?

12V maximum.

What is the peak pulse current rating?

1.5A (8/20µs waveform).

What is the package type?

X2-DFN0806-3 surface mount package.

What is the ESD rating?

±15kV air and contact discharge per IEC 61000-4-2.

What is the typical capacitance?

0.5pF at 1MHz.
