| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

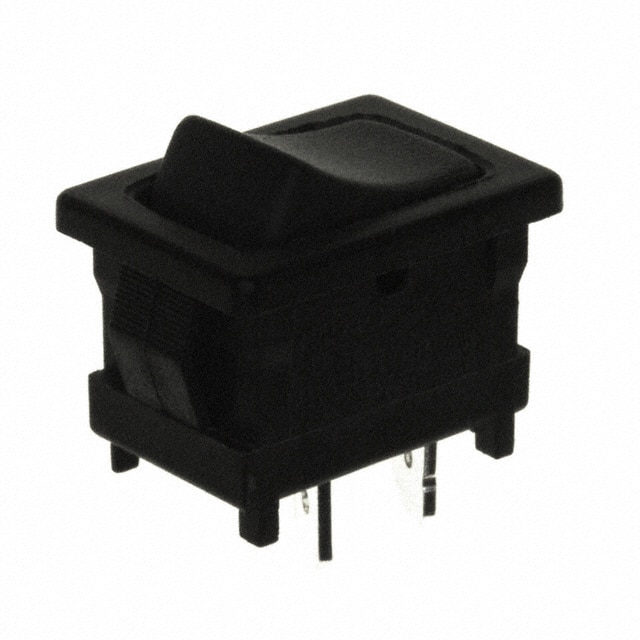

The C&K D502J12S205QA is a miniature snap-in power rocker switch from the D Series. This SPST (Single Pole Single Throw) switch is rated for 10A at 125V AC and features a maintained On-Off function.
Designed for panel mounting with a snap-in style, it utilizes quick connect terminals for easy installation. The actuator is concave and black, with no specific marking. The operating temperature range is -30°C to 65°C, and it offers a dielectric strength of 1,000 Vrms min. and an insulation resistance of 10⁹ Ω min.
Key materials include a 6/6 nylon actuator and housing, with copper or brass silver-plated stationary contacts and terminals. Movable contacts are copper with silver plating. This switch is RoHS3 compliant and has an MSL of 1.
Applications for this series include small appliances, computers and peripherals, and medical instrumentation. The switch has an electrical life of 10,000 make-and-break cycles at full load.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 125 V AC.
The current rating is 10A (AC) and 6A (DC).
The operating temperature range is -30°C to 65°C.
Yes, the RoHS status is RoHS3 Compliant.
