| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Cable Clamp Opening | |
| Cable Exit | |
| Cable Type | |
| Color | |
| Features | |
| Hardware | |
| Material | |
| Number of Positions | |
| Primary Material | |
| Shielding |

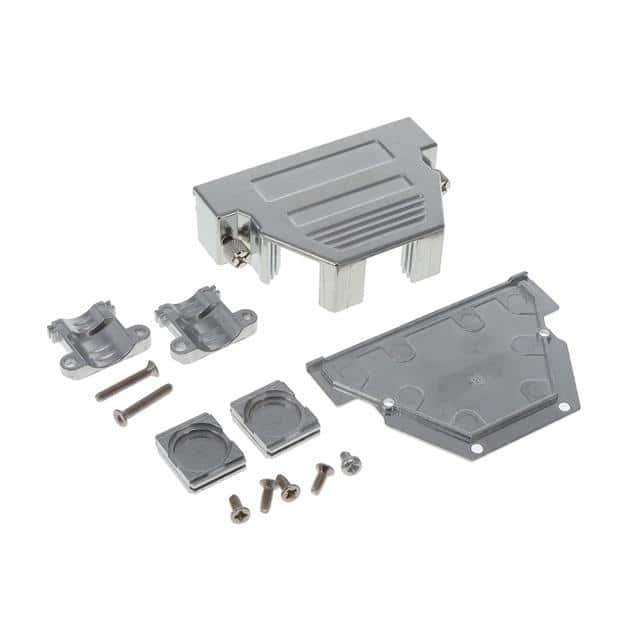

The Positronic D50000GE0 is a two piece backshell designed for D-Sub connectors. It accommodates 50 positions and features a 180° cable exit for round cables. The backshell is constructed from zinc die cast with a silver finish and includes shielding for EMI protection.
Mechanical specifications include a cable clamp opening range of 5.00 mm minimum to 14.00 mm maximum. The assembly includes mating screws 4-40 and hardware such as cable clamp and assembly hardware. The backshell is made of metal (zinc die cast) with nickel-plated brass jackscrews and steel screws.
This backshell is suitable for applications requiring robust cable management and shielding in D-Sub connector assemblies. It is designed for use with round cables and provides a secure, shielded enclosure for the connector interface.
It is a two piece backshell.
It supports 50 positions.
The cable exit is 180°.
The cable clamp opening is 5.00 mm minimum to 14.00 mm maximum.
Yes, it is shielded.
It is made of zinc die cast metal with a silver finish.
It includes assembly hardware, cable clamp, and mating screws 4-40.
