| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Frequency | |
| Housing Material | |
| Impedance | |
| Insertion Loss | |
| Insulation Resistance | |
| Mating Cycles | |
| Mounting Type | |
| SVHC Present | |
| Tape & Reel | |
| Temperature Range | |
| Weight | |
| Working Voltage |

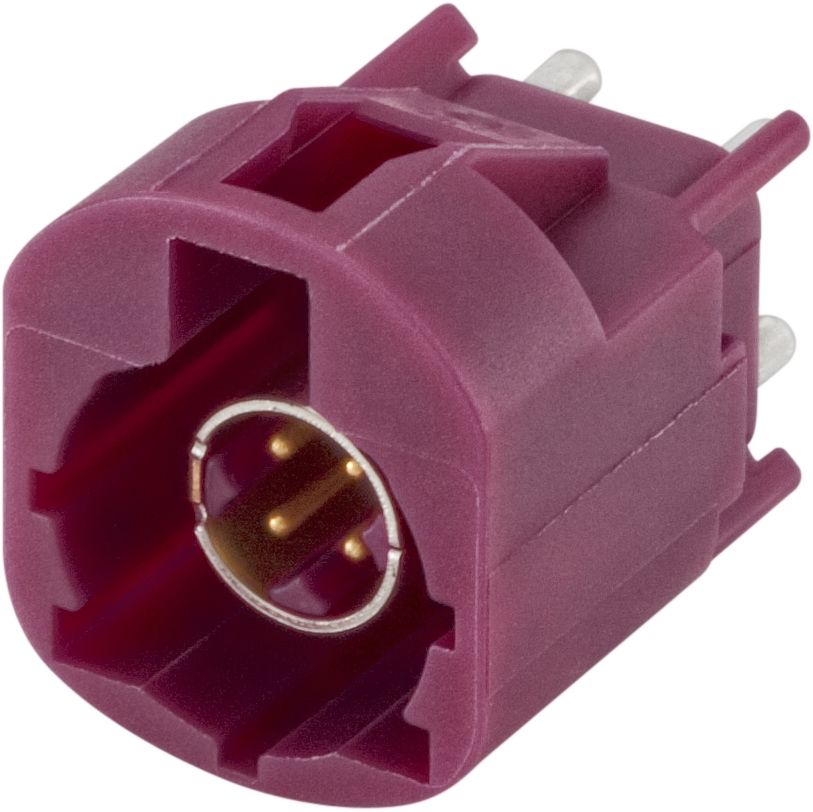

This Rosenberger HSD® connector, part number D4S10E-40MA5-D, is a straight plug designed for PCB mounting with SMD Pin-in-Paste termination. It features a nominal differential impedance of 100 Ohms and supports differential signaling for one pair or quad cable.
The connector operates across a wide frequency range from DC to 2.0 GHz, with a return loss of ≥ 20 dB to 1.0 GHz and ≥ 17 dB to 2.0 GHz. Insertion loss is minimal at ≤ -0.1 dB @ 1.0 GHz. Electrical characteristics include a skew of ≤ 5 psec between signal contacts, crosstalk levels of ≤ -30 dB (near-end) and ≤ -35 dB (far-end), and an insulation resistance of ≥ 1x10³ MΩ.
Mechanical specifications include a mating cycle rating of ≥ 25, an engagement force of ≤ 30 N, and a retention force latch of ≥ 110 N. The operating temperature range is -40°C to +105°C. The center contact is spring bronze plated with gold (interface) and tin over nickel (PCB), while the outer contact is spring bronze plated with nickel (interface) and tin over nickel (PCB). The housing is made of PA.
This connector is suitable for automotive applications and is supplied in tape and reel packaging with 50 pieces per standard package.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal differential impedance is 100 Ω.
DC to 2.0 GHz.
Up to 2.5 A DC at 85°C.
60 V DC.
PC-Board SMD Pin-in-Paste.
-40°C to +105°C.
≤ -0.1 dB.
