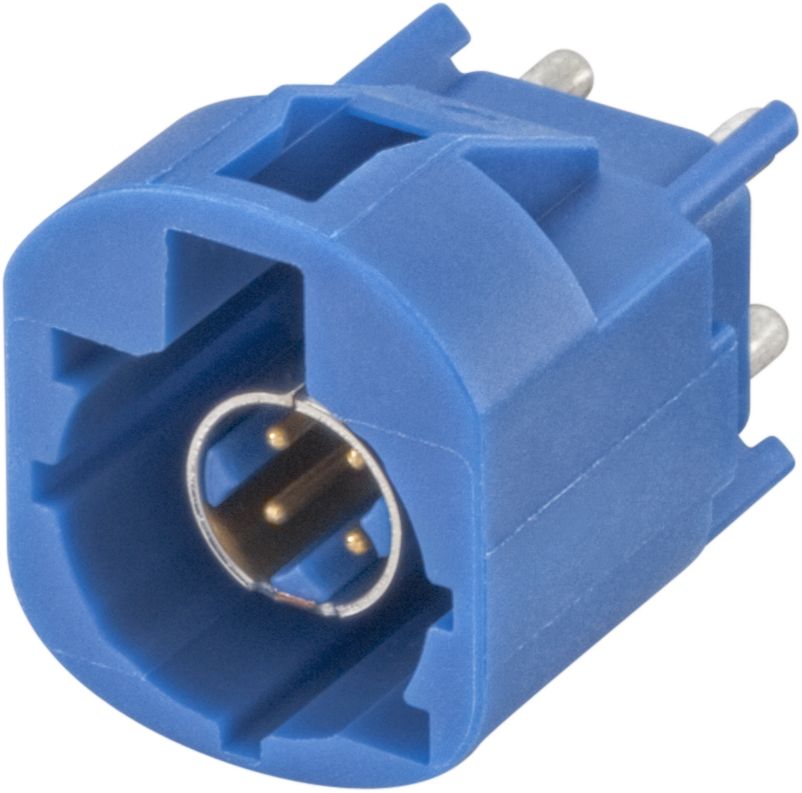

The Rosenberger D4S10E-40MA5-C is a straight plug connector designed for PCB mounting, belonging to the Rosenberger HSD series. This connector is engineered for differential signaling applications and features a nominal impedance of 100 Ohms.
With an operational frequency range from DC to 2.0 GHz, it maintains a return loss of ≥ 20 dB to 1.0 GHz and ≥ 17 dB to 2.0 GHz. The insertion loss is a maximum of -0.1 dB at 1.0 GHz, with a skew between signal contacts of ≤ 5 psec. Electrical characteristics include a signal contact resistance of ≤ 10 mOhms and an outer contact resistance of ≤ 7.5 mOhms. It is rated for a working voltage of 60 V DC and a power current of up to 2.5 A DC at 85°C.
Mechanically, the connector supports a minimum of 25 mating cycles, with an engagement force of ≤ 30 N and a disengagement force of ≥ 5 N. The operating temperature range is -40°C to +105°C. The connector is supplied in tape and reel packaging with a standard package quantity of 1200 units.
This connector is suitable for automotive applications, offering robust performance within its specified environmental and electrical parameters. Its PCB mounting and SMD Pin-in-Paste backend type facilitate integration into electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 100 Ohms in differential mode.
The connector operates from DC to 2.0 GHz.
The insertion loss is a maximum of -0.1 dB at 1.0 GHz.
The operating temperature range is -40°C to +105°C.
It supports a minimum of 25 mating cycles.
The power current rating is up to 2.5 A DC at 85°C.
The mounting type is PCB.
