| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | 07+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Termination | |
| Voltage Rating |

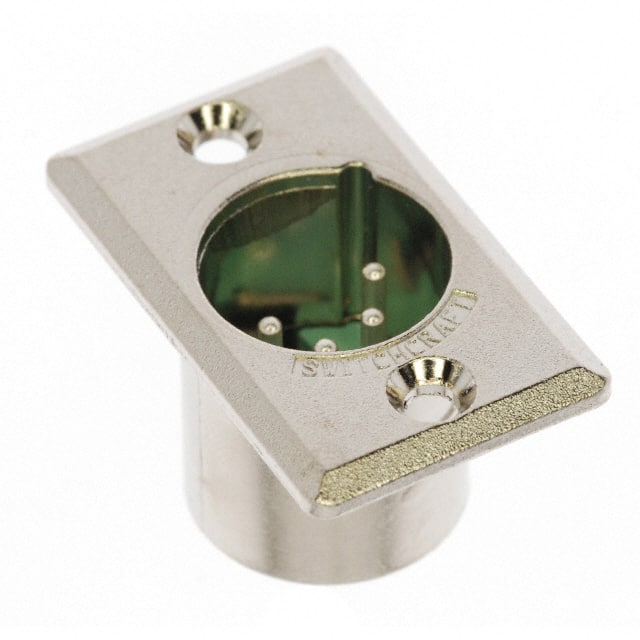

The Conxall/Switchcraft D4MBAU is an XLR panel mount receptacle designed for professional audio, lighting, and industrial interconnect applications. It features a 4-position male pin configuration with a latch lock fastening system for secure mating. The keyed orientation prevents incorrect insertion, ensuring alignment during connection.
Electrically, the connector is rated for 10A at 125VAC, with gold-plated contacts for low resistance and reliable signal integrity. The shell is constructed from zinc with a black finish, providing durability and a professional appearance. The solder cup termination allows straightforward field wiring without special tools.
Mechanically, the receptacle is designed for panel mounting with a flange, making it suitable for fixed installation in control panels, mixing consoles, or stage boxes. The integrated ground feature ensures proper grounding for shielded cables. The compact XLR form factor is industry-standard for balanced audio connections.
4 positions.
10 A.
125 VAC.
Panel mount with flange.
Solder cup.
Yes, the orientation is keyed to ensure correct mating.
Zinc shell with black finish.
