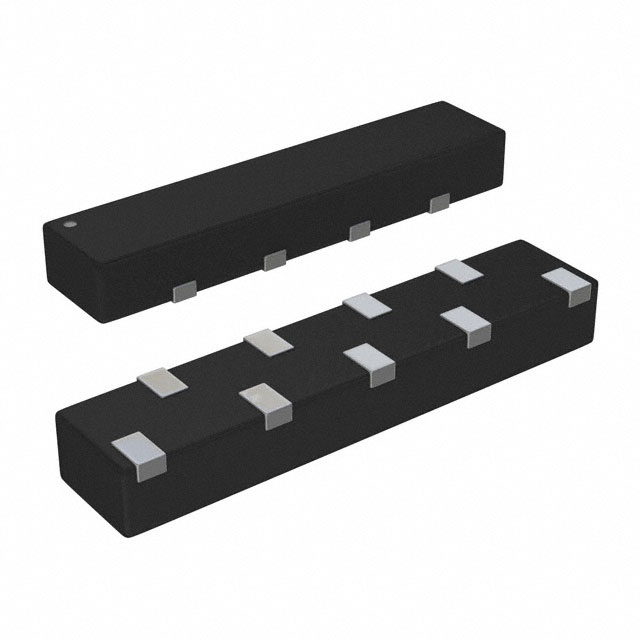

The D3V3F8U9LP3810-7 is an 8-channel low capacitance TVS diode array designed for protecting high-speed data lines. It features a typical clamping voltage of 5V at 16A TLP and an ultra-low channel input capacitance of 0.55pF typical at 1MHz, making it suitable for high-speed interfaces.
This device offers IEC 61000-4-2 ESD protection of ±12kV for both contact and air discharge, and IEC 61000-4-5 lightning surge protection of 5A (8/20µs). The typical dynamic resistance is 0.25Ω, ensuring low clamping performance.
The D3V3F8U9LP3810-7 is housed in a surface-mount U-DFN3810-9 (Type B) package with NiPdAu terminal finish. It is RoHS3 compliant, lead-free, and halogen and antimony free. The operating temperature range is -55°C to 85°C.
The minimum breakdown voltage is 5.5V.
The typical clamping voltage is 5V at 16A TLP.
The maximum peak pulse current is 5A for an 8/20µs waveform (I/O to VSS).
It is available in a surface-mount U-DFN3810-9 (Type B) package.
The typical channel input capacitance is 0.55pF at 1MHz.
It provides ±12kV contact and ±12kV air discharge ESD protection per IEC 61000-4-2.
