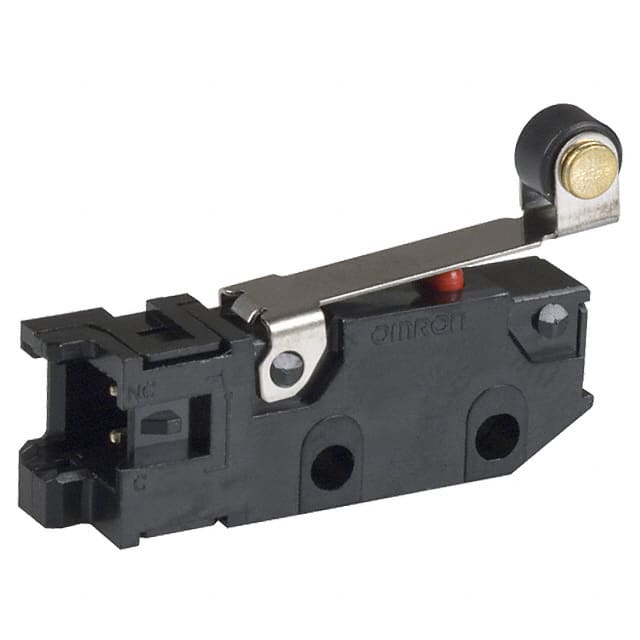

D3M-01L2 The Omron D3M-01L2 is a snap action switch designed for various applications. It features a chassis mount and a lever/roller actuator.
Mfr Part #:

D3M-01L2

Available from 1 distributors
Mfr Name: Omron
Omron
The Omron D3M-01L2 is a snap action switch designed for various applications. It features a chassis mount and a lever/roller actuator.
✓ Total Stock: 98 pcs
$ Price Range: $0.75

D3M-01L2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
98 pcs
On Request
98 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

D3M-01L2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Circuit
Current Rating (Amps)
Differential Travel
Failure Rate
Ingress Protection
Mounting Type
Operating Force
Operating Temperature
Overtravel
Product Type
Release Force
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

D3M-01L2 Description

Short technical summary and product information.

The Omron D3M-01L2 is a miniature snap action switch with a SPST-NC circuit configuration. It is rated for a maximum of 30V DC and a current of 100mA.



This switch features a chassis mount for secure installation and is equipped with a lever and roller actuator for precise operation. The operating temperature range is from -25°C to 85°C, and it has an Ingress Protection rating of IP40.



Key mechanical specifications include an operating force of 102gf, a release force of 10gf, an overtravel of 0.026" (0.7mm), and a differential travel of 0.025" (0.6mm). The switch is non-illuminated and has a termination style of Connector.



This component is suitable for applications requiring reliable switching under specific mechanical and electrical conditions. Its robust construction and defined operating parameters make it a dependable choice for industrial and electronic designs.

D3M-01L2 Quick Information

Product Type: Snap Action Switch
Series: D3m
Canonical Name: Omron D3M-01L2 Snap Action Switch
Subcategory: Snap Action Switch

D3M-01L2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

D3M-01L2 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

D3M-01L2 Features

  • SPST-NC snap action switch.
  • Rated for 30V DC and 100mA.
  • Chassis mount design.
  • Lever and roller actuator.
  • Operates from -25°C to 85°C.

D3M-01L2 Applications

  • Ideal for control circuits.
  • Used in automation systems.
  • Suitable for industrial equipment.
  • Applicable in electronic devices.

D3M-01L2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the D3M-01L2 switch?

The D3M-01L2 switch has an operating voltage rating of 30V DC.

What is the current rating of the D3M-01L2 snap action switch?

The D3M-01L2 snap action switch is rated for 100mA (DC).

What type of mounting does the D3M-01L2 switch use?

The D3M-01L2 switch uses a chassis mount.

What is the operating temperature range for the D3M-01L2 switch?

The D3M-01L2 switch operates within a temperature range of -25°C to 85°C.

What is the RoHS status of the D3M-01L2 switch?

The D3M-01L2 switch is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the D3M-01L2?

The Moisture Sensitivity Level (MSL) for the D3M-01L2 is 1 Unlimited.

What is the REACH status for the D3M-01L2?

The REACH status for the D3M-01L2 is REACH Unaffected.
