| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
99 pcs
|
99 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Ingress Protection | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Release Force | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

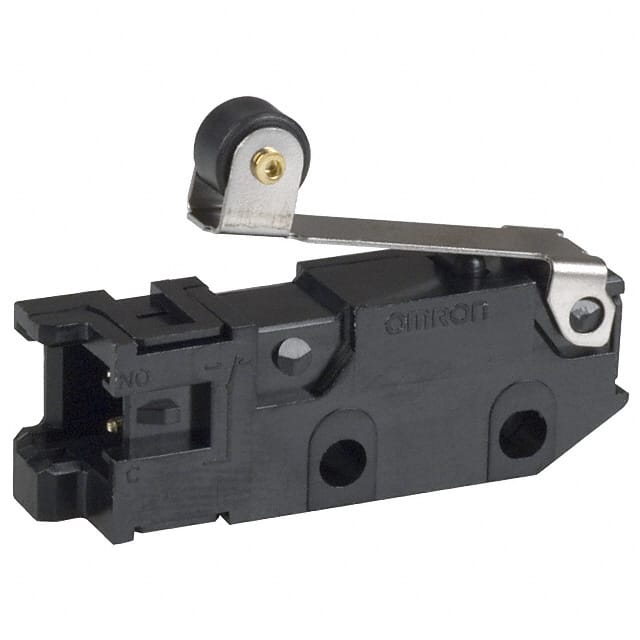

The Omron D3M-01K2-3 is a limit switch designed for various applications. It operates within a temperature range of -25°C to 85°C and features a chassis mount with connector termination.
This switch has a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration. It is rated for a current of 100mA DC and a voltage of 30V. The actuator type is lever with a roller, and it has an operating force of 51gf.
Key mechanical specifications include an overtravel of 0.047" (1.2mm) and a differential travel of 0.031" (0.8mm). The ingress protection rating is IP40, indicating protection against solid objects larger than 1mm and no protection against water.
Environmental compliance includes RoHS3 compliance and an MSL rating of 1. The REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -25°C to 85°C.
The current rating is 100mA DC.
The voltage rating is 30V.
It uses chassis mounting.
It is RoHS3 Compliant.
The MSL is 1.
