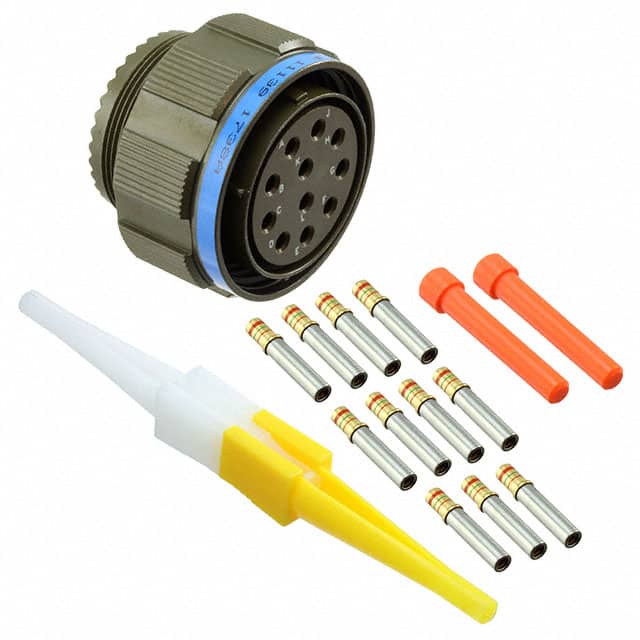

The D38999/26WG11SN is a circular connector plug from TE Connectivity, part of the MIL-DTL-38999 Series III family. It features 11 female socket contacts arranged in a shell size 21-11 with a normal orientation. The connector uses crimp termination and a threaded coupling mechanism for secure mating.
The shell is made of aluminum with an olive drab cadmium finish, providing corrosion resistance and durability. The contacts are gold-plated for reliable low-resistance connections. This connector is rated for a continuous current of 23A and operates over a wide temperature range from -65°C to 175°C.
Designed for free-hanging (in-line) mounting, it includes self-locking features and is fully shielded for EMI protection. The olive drab color and environment-resistant ingress protection make it suitable for harsh environments, including military and aerospace applications.
It has 11 positions (female sockets).
The current rating is 23A.
It is designed for free hanging (in-line) mounting.
It operates from -65°C to 175°C.
The shell is aluminum with an olive drab cadmium finish.
It uses a threaded fastening mechanism.
The contacts have a gold finish.
