| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,800 pcs
|
2800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shell Size, MIL | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style |

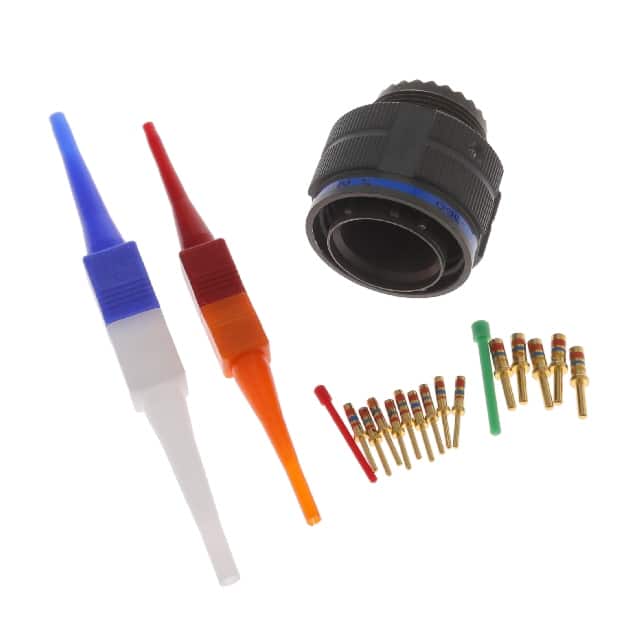

The D38999/26WD97PA is a MIL-DTL-38999 Series III circular connector plug from Amphenol Aerospace Operations. It has 12 male pin contacts arranged in orientation A, housed in a shell size 15-97 (MIL size D). The connector uses crimp termination for reliable wire attachment and gold contact finish for low resistance and corrosion resistance.
The shell is made of aluminum with an olive drab cadmium finish, providing durability and environmental protection. The connector is shielded for EMI protection and features a threaded coupling nut for secure mating. It is rated for operating temperatures from -65°C to 175°C and is environment resistant, suitable for harsh conditions.
Mounting is free hanging (in-line) with a crimp termination style. The connector is designed for use in aerospace, military, and other high-reliability applications where ruggedness and signal integrity are critical.
Plug, Male Pins
12 positions
Shell size 15-97, MIL size D
Free Hanging (In-Line)
Crimp
-65°C to 175°C
Yes, it is shielded
