| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Fastening Type | |
| Ingress Protection | |
| Lead Style | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shell Size, MIL | |
| Shielding | |
| Termination |

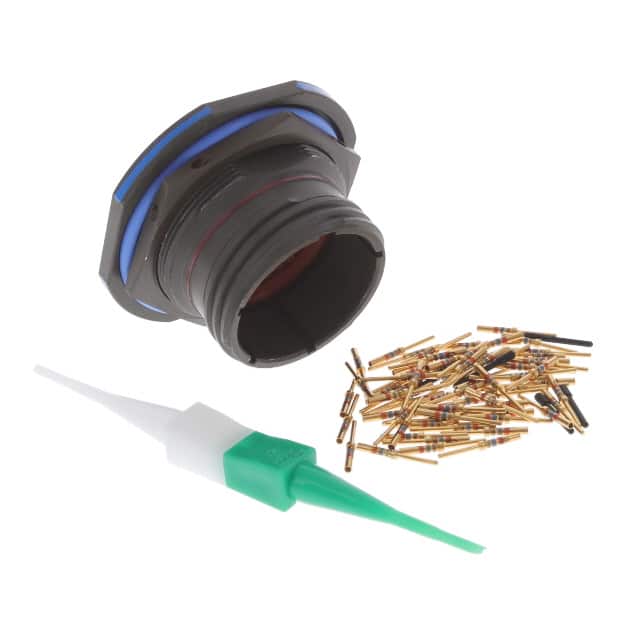

The D38999/24WF35PN is a 66-position circular connector receptacle manufactured by Souriau-Sunbank by Eaton. It is a panel-mount connector with a bulkhead front side nut, designed for secure installation in fixed enclosures. The connector uses crimp termination and a threaded coupling mechanism, and it features male pin contacts.
This MIL-DTL-38999-style receptacle is built with an aluminum shell finished in olive drab cadmium, offering corrosion resistance and a durable exterior. It is fully shielded and provides environment-resistant sealing to protect internal connections. Gold-plated contacts ensure stable electrical performance and low insertion loss. The connector supports an operating temperature range of -65°C to 175°C, making it suitable for extreme environments.
With 66 contacts sized #22D, the connector is designed for high-density wiring applications. The shell size is 19-35 with a MIL shell size F. The normal orientation and threaded fastening provide a robust, vibration-resistant connection when mated with the appropriate plug.
Typical applications for this receptacle include military and aerospace interconnect systems where reliability and environmental sealing are critical. Its panel-mount bulkhead design allows for easy installation in equipment chassis and enclosures.
This connector has 66 positions.
It is a receptacle with male pin contacts.
It is panel mounted with a bulkhead front side nut.
It uses crimp termination.
Yes, it is shielded.
It operates from -65°C to 175°C.
The fastening type is threaded.
