| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

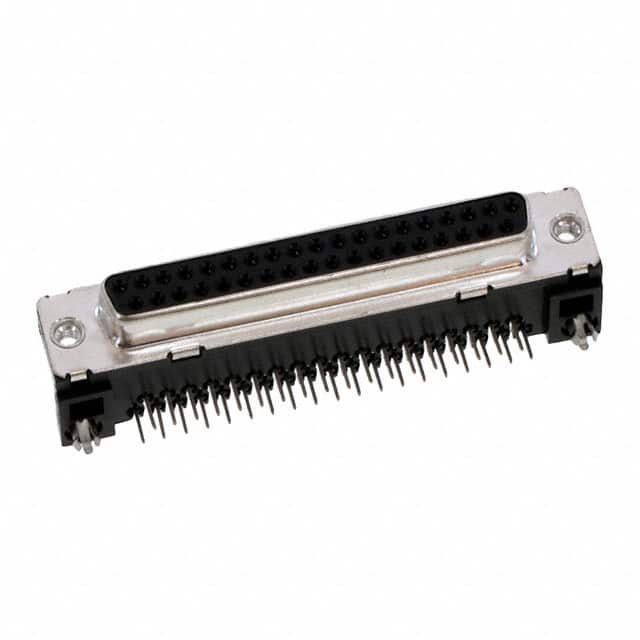

The D37S13A4GX00LF is a 37-position D-Sub receptacle manufactured by Amphenol ICC. It features a right angle through-hole mounting style with solder termination, making it suitable for PCB applications where space is limited. The connector has 2 rows of female sockets with gold flash contacts for reliable signal transmission.
The shell is made of steel with a tin-nickel plating, providing durability and EMI shielding. The connector layout is shell size 4 (DC, C) with a backset spacing of 0.409 inches (10.40 mm). It includes a flange feature with housing/shell (4-40) threads for secure mating. Additional features include board locks and mounting brackets to hold the connector in place during soldering.
The insulator material has a flammability rating of UL94 V-0. Each contact is rated for 5 A of current. This connector is designed for signal applications and is RoHS3 compliant (unverified).
37 positions.
5 A per contact.
Through hole, right angle.
Gold flash.
Steel, tin-nickel plated.
Yes, it includes board lock and mounting brackets.
UL94 V-0.
