| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

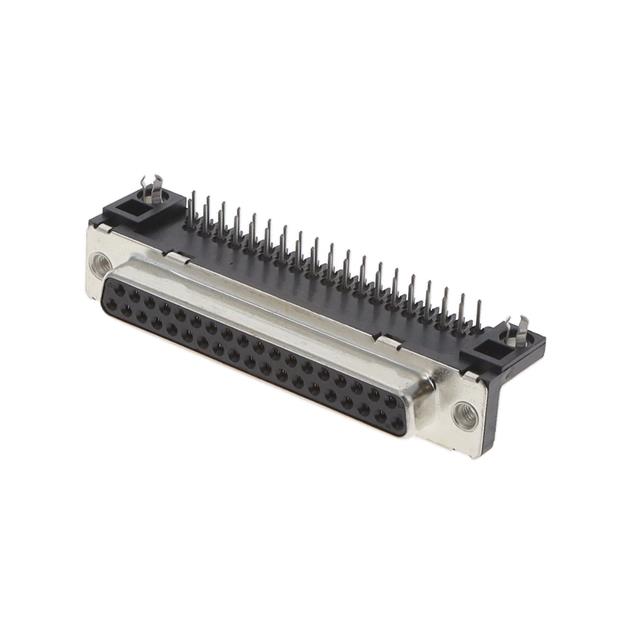

The D37S13A4GL00LF is a D-Sub receptacle connector from Amphenol ICC, designed with 37 female socket contacts arranged in 2 rows. It features a right angle through-hole mounting style with solder termination, making it suitable for PCB applications where space constraints require a low-profile right-angle connection.
The connector has a shell size of 4 (DC, C) and a backset spacing of 10.40mm (0.409 inches). The contacts are finished with gold flash for reliable signal transmission, and the steel shell is plated with tin-nickel for corrosion resistance. The insulator material is rated UL94 V-0 for flammability.
Additional features include integrated board locks and mounting brackets to secure the connector to the PCB during soldering and use. The current rating is 5A per contact, suitable for signal and low-power applications. This connector is commonly used in data communication, industrial control, and computer I/O interfaces.
37 positions.
5A per contact.
Through hole, right angle.
Gold flash.
Steel, tin-nickel plated.
Yes, it includes board lock and mounting brackets.
UL94 V-0.
