| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

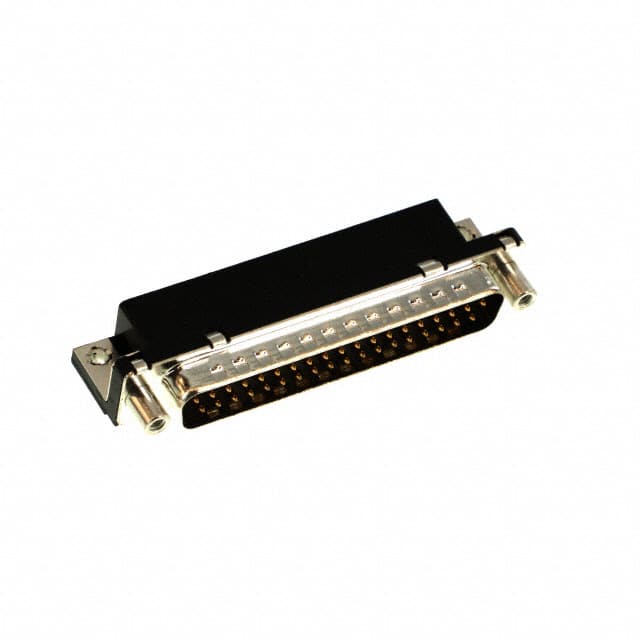

The D37P13A4GV00LF is a 37-position D-Sub plug connector manufactured by Amphenol ICC. This male pin connector is designed for through-hole mounting with a right-angle orientation, making it suitable for applications where space constraints require a compact PCB layout.
It features a steel shell with tin-nickel plating for durability and EMI shielding. The contacts are gold flash plated, ensuring reliable signal integrity. The insulator material meets UL94 V-0 flammability rating, providing fire safety compliance. The connector includes board locks, grounding indents, and mounting brackets for secure attachment to the PCB.
Each contact is rated for 5A current. The connector has a 2-row configuration with a shell size of 4 (DC, C). The backset spacing is 0.409 inches (10.40 mm). The flange feature includes mating side female screwlocks (4-40) for secure mating with the corresponding receptacle.
This D-Sub connector is commonly used in industrial, telecommunications, and computer peripheral equipment where reliable multi-pin connections are required. The right-angle design allows for low-profile cable routing along the PCB edge.
37 positions.
5A per contact.
Through hole, right angle.
D-Sub plug with male pins.
4 (DC, C).
Gold flash.
Board lock, grounding indents, mounting brackets.
