| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
160 pcs
|
160 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

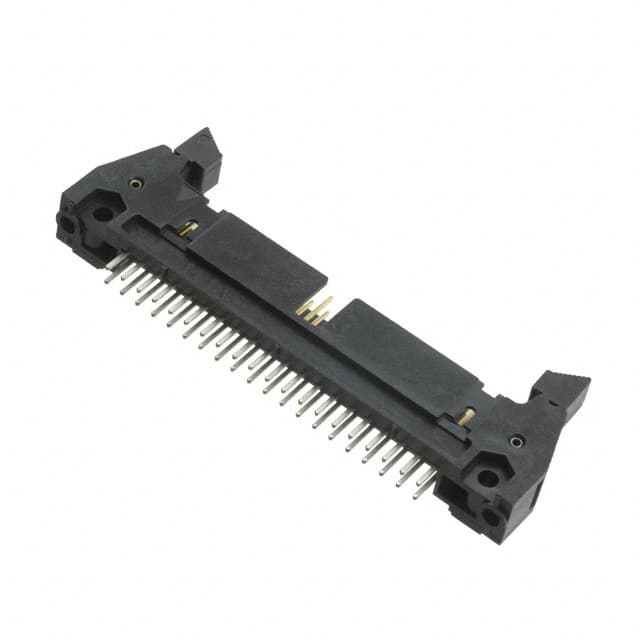

The 3M D3432-6202-AR is a rectangular connector header designed for board-to-cable/wire applications. It has 40 positions arranged in 2 rows with a standard 2.54mm pitch and row spacing. The header is shrouded with a 4-wall design and includes short latch lock/eject hooks for secure mating. Contacts are male pins made of brass with a tin finish (10µin thickness). The insulation material is black PCT/polyester glass-filled, rated UL94 V-0. Mounting is through hole with solder termination. The connector is rated for 1.75A per contact and operates from -55°C to 105°C. Features include a keying slot and mounting flange for alignment and secure attachment. This header is suitable for various interconnection needs in industrial and commercial electronics.
40 positions.
2.54mm (0.100").
1.75A per contact.
Through hole.
-55°C to 105°C.
Brass contacts with tin finish (10µin).
Yes, it has a shrouded 4-wall design with latch lock/eject hooks.
