| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
330 pcs
|
330 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

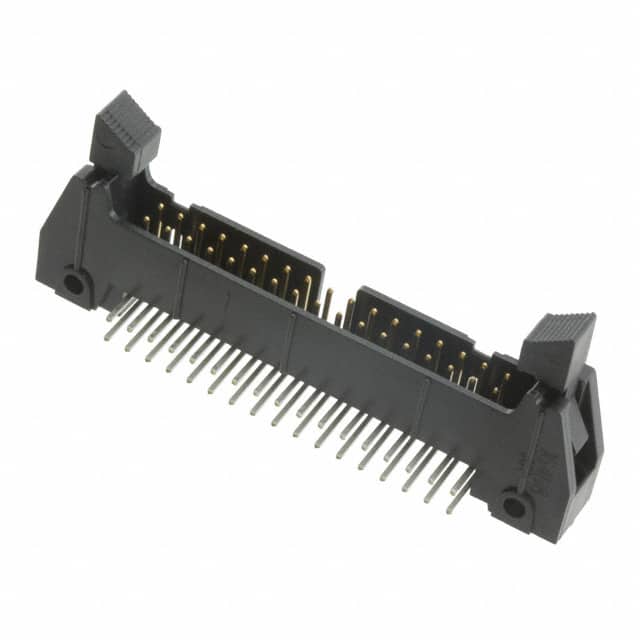

The 3M D3431-5202-AR is a 34-position male pin header designed for board-to-cable/wire applications. It features a 2.54mm pitch, 2 rows of contacts, and a right angle through hole mounting style with solder termination. The header is fully shrouded with a 4-wall design and includes a latch lock/eject hook fastening system for secure mating.
Key specifications include a current rating of 1.75A per contact, an operating temperature range of -55°C to 105°C, and contacts made of brass with a tin finish of 10.0µin thickness. The insulation material is black PCT/polyester glass filled, rated UL94 V-0 for flammability. The header also features a keying slot and mounting flange for alignment and mechanical stability.
This connector is suitable for use in industrial control systems, data communication equipment, and other applications requiring reliable board-to-wire connections. The square contact pins have a length of 6.10mm, and all 34 positions are loaded.
The header has 34 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100 inches).
Through hole, right angle mounting with solder termination.
The current rating is 1.75A per contact.
The operating temperature range is -55°C to 105°C.
The contact finish is tin with a thickness of 10.0µin (0.25µm).
The insulation material is rated UL94 V-0.
