| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Features | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Release Time | |
| Switching Voltage | |
| Tape & Reel | |
| Termination Style |

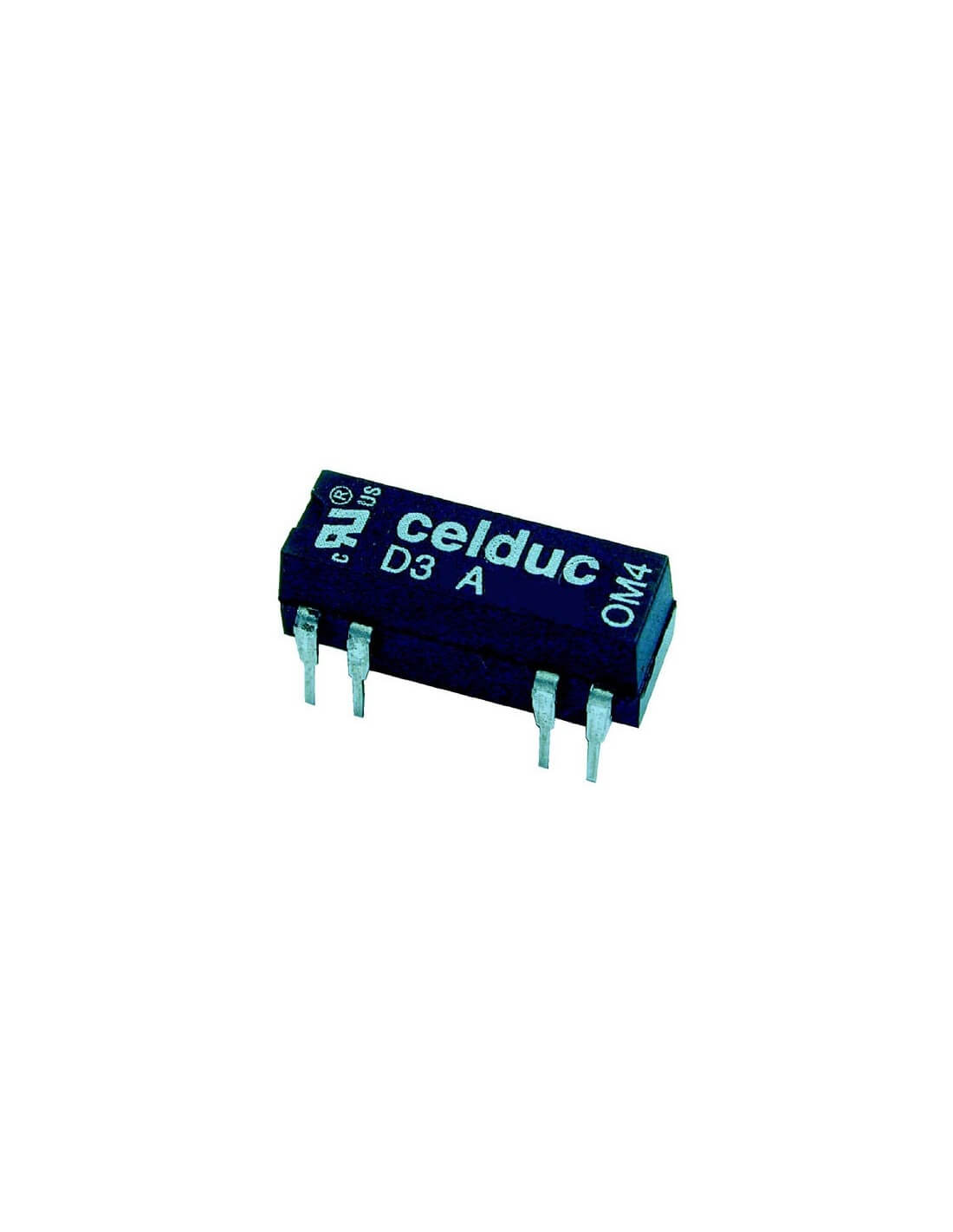

The Celduc Inc. D31C5110 is a non-latching reed relay with a 12VDC coil voltage and a coil current of 24 mA. It offers a SPDT (1 Form C) contact form with a contact rating of 250 mA and a maximum switching voltage of 100VDC.
This relay has an operate time of 1.5 ms and a release time of 2 ms, with a must-operate voltage of 9 VDC and a must-release voltage of 1 VDC. The contact material is Rhodium (Rh). It operates within a temperature range of -40°C to 70°C and includes a diode for protection.
The D31C5110 is designed for through-hole mounting and features a PC pin termination style. It is compliant with RoHS3 standards and has an MSL rating of 1 Unlimited. REACH status is unaffected.
This component is suitable for applications requiring reliable switching with specific voltage and current parameters.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage for the D31C5110 reed relay is 12VDC.
The contact form is SPDT (1 Form C).
The contact rating for the D31C5110 reed relay is 250 mA.
The operating temperature range is -40°C to 70°C.
Yes, the D31C5110 reed relay features a diode.
It is designed for through-hole mounting.
