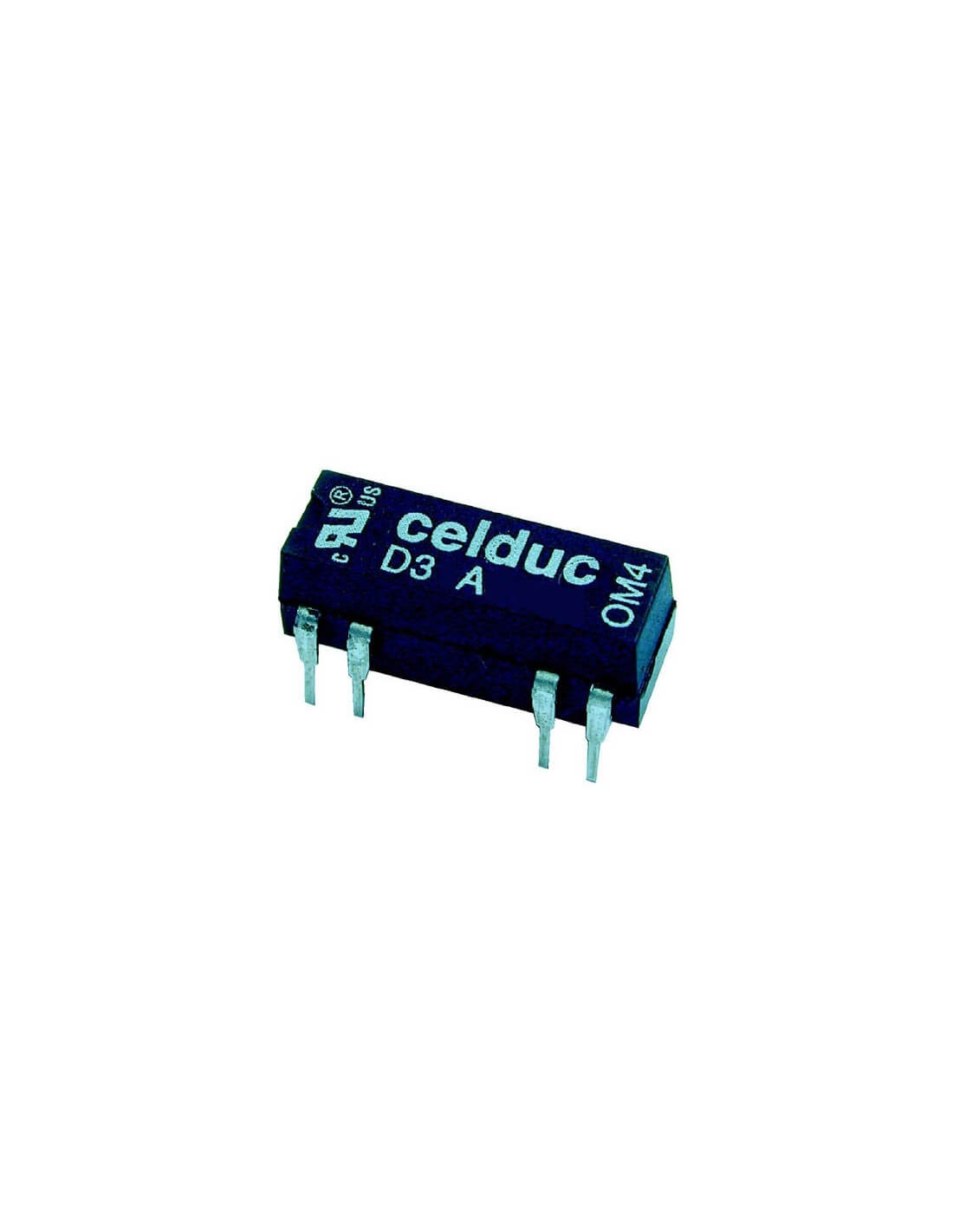

D31C5100 The Celduc Inc. D31C5100 is a non-latching reed relay with a 12VDC coil and SPDT contact form. It features a 250mA contact rating and 100VDC maximum switching voltage.
Mfr Part #:

D31C5100

Available from 1 distributors
Mfr Name: Celduc Inc.
Celduc Inc.
The Celduc Inc. D31C5100 is a non-latching reed relay with a 12VDC coil and SPDT contact form. It features a 250mA contact rating and 100VDC maximum switching voltage.
✓ Total Stock: 8 pcs
$ Price Range: $2.00

D31C5100 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

D31C5100 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Current
Coil Type
Coil Voltage
Contact Form
Contact Material
Contact Rating (Current)
Contact Resistance
Insulation Resistance
Mounting Type
Must Operate Voltage
Must Release Voltage
Operate Time
Operating Temperature
Release Time
Storage Temperature
Switching Voltage
Tape & Reel
Termination Style
Thermal Resistance
View Similar Products (0)

D31C5100 Description

Short technical summary and product information.

The Celduc Inc. D31C5100 is a dual in-line reed relay featuring a single pole, double throw (SPDT) contact configuration. It operates with a nominal 12VDC coil voltage and is non-latching.



This relay is designed for through-hole mounting with PC pin termination. It offers a maximum switching voltage of 100VDC and a maximum switching current of 250mA. The contact material is Rhodium (Rh), and the initial contact resistance is a maximum of 150 mΩ.



Key electrical characteristics include a typical operate time of 1.5 ms and a typical release time of 2 ms. The coil current is 24 mA, with a must operate voltage of 9 VDC and a must release voltage of 1 VDC. The relay has a mechanical life expectancy of 1 x 10^9 operations.



Environmental specifications include an operating temperature range of -40°C to 70°C and a storage temperature range of -40°C to 105°C. It is also rated for vibration resistance up to 30g and shock resistance up to 20g.

D31C5100 Quick Information

Product Type: Reed Relay
Canonical Name: D31C5100 Dual In-line Reed Relay
Subcategory: Reed Relay

D31C5100 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

D31C5100 Estimated Pricing

Qty Low High
1+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

D31C5100 Features

  • 12VDC non-latching reed relay
  • SPDT (1 Form C) contact configuration
  • 250mA maximum switching current
  • 100VDC maximum switching voltage
  • Through hole mounting with PC pins

D31C5100 Applications

  • Ideal for signal switching applications
  • Suitable for automated test equipment
  • Used in telecommunication circuits
  • Applicable in control systems

D31C5100 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the coil voltage for the D31C5100 reed relay?

The coil voltage for the D31C5100 reed relay is 12VDC.

What is the contact form of the D31C5100 reed relay?

The D31C5100 reed relay has an SPDT (1 Form C) contact form.

What is the maximum switching current for the D31C5100 reed relay?

The maximum switching current for the D31C5100 reed relay is 250 mA.

What is the maximum switching voltage of the D31C5100 reed relay?

The maximum switching voltage for the D31C5100 reed relay is 100VDC.

What is the operating temperature range for the D31C5100 reed relay?

The operating temperature range for the D31C5100 reed relay is -40°C to 70°C.
