| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Resistance | |
| Contact Material | |
| Contact Resistance | |
| Insulation Resistance | |
| Mounting Type | |
| Operate Time | |
| Operating Temperature | |
| Operating Voltage | |
| Release Time | |
| SVHC Present | |
| Storage Temperature | |
| Thermal Resistance |

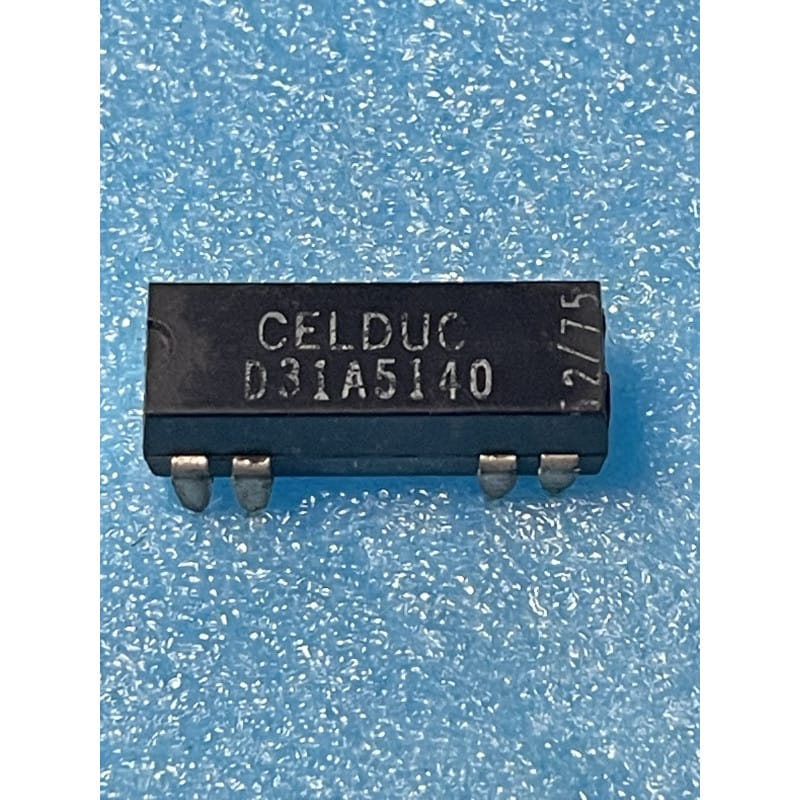

This Celduc Inc. D31A5140 is a dual in-line reed relay designed for various switching applications. It utilizes rhodium for its contact material, ensuring reliable performance.
The relay offers a maximum switching power of 10W and can handle a carrying current of 1A. The maximum switched current is 500mA with a maximum switching voltage of 100V peak. Its switching frequency can reach up to 200 Hz.
With an initial contact resistance of 150 mΩ max and an insulation resistance of 10^10 Ω, the D31A5140 is built for durability. It has an electrical life expectancy of 10^6 operations at 10W and 10^7 operations at 50V/100mA, with a mechanical life expectancy of 10^9 operations.
The device operates within a temperature range of -40°C to +85°C and has a storage temperature range of -40°C to +105°C. It is designed for through-hole mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 8V at 20°C.
The D31A5140 is housed in a DIP (Dual In-line Package) for through-hole mounting.
The operating temperature range is -40°C to +85°C.
The contact material is rhodium.
The coil resistance is 1000Ω ±10% at 20°C.
The maximum switching current is 500mA.
The mechanical life expectancy is 10^9 operations.
