| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Release Time | |
| Switching Voltage | |
| Tape & Reel | |
| Termination Style |

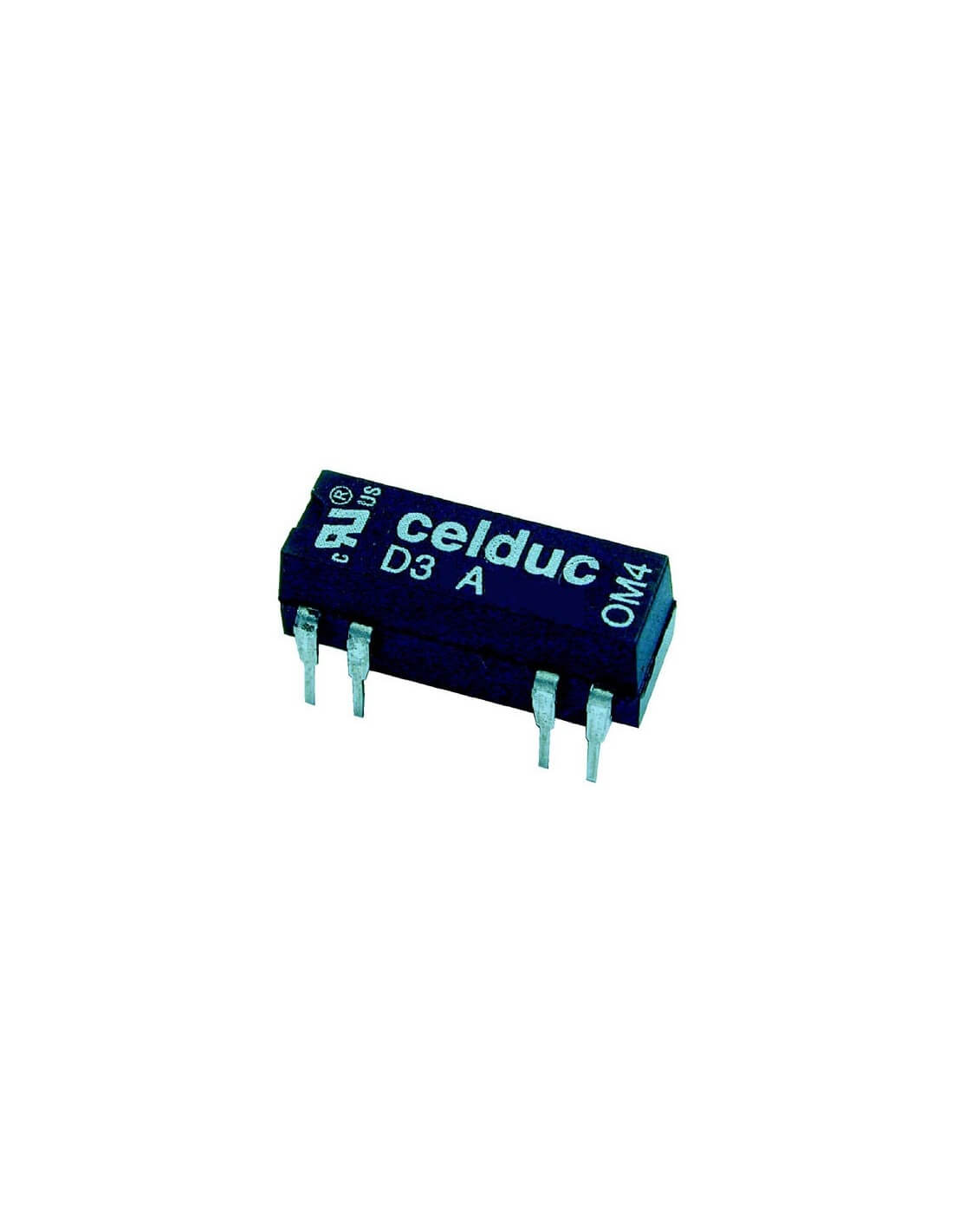

The Celduc Inc. D31A5100 is a reed relay designed for various electronic applications. It operates with a 12VDC coil and features a non-latching coil type. The contact form is SPST-NO (1 Form A), capable of switching up to 100VDC at a maximum current of 500 mA. The contact material is Rhodium (Rh), ensuring reliable performance.
This relay is suitable for through-hole mounting and uses a PC Pin termination style. It has an operate time of 1 ms and a release time of 50 µs. The operating temperature range is from -40°C to 70°C. The coil requires a minimum operate voltage of 9 VDC and a maximum release voltage of 1 VDC, with a coil current of 12 mA.
Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status. However, these compliance details are unverified and should be reviewed.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 12VDC.
The contact form is SPST-NO (1 Form A).
The contact rating is 500 mA.
The operating temperature range is -40°C to 70°C.
It is designed for through-hole mounting.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
