| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
233 pcs
|
233 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating (Amps) | |
| Gender | |
| Height | |
| Housing Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Pitch | |
| Tape & Reel | |
| Type |

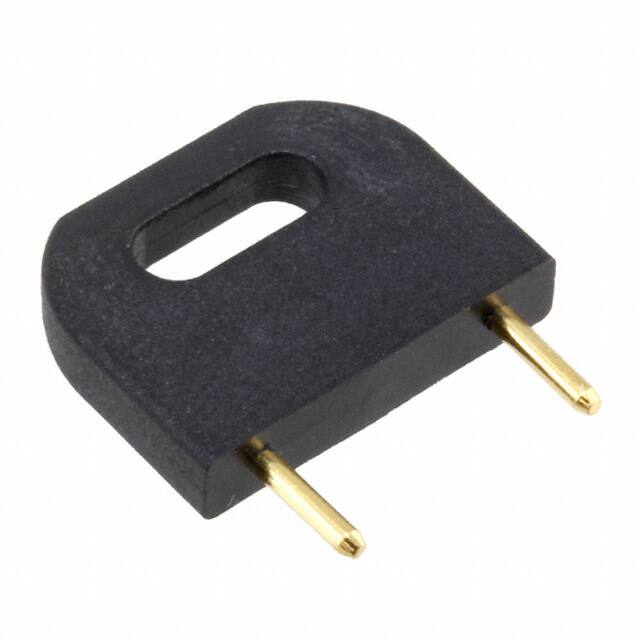

The D3088-98 is a closed top shunt jumper designed for shorting or connecting adjacent pins in a 10.16mm pitch header. It features a 2 position (1x2) configuration with male pins and a grip style for secure engagement. The contacts are gold plated with a thickness of 3.94µin (0.10µm), providing reliable low-resistance connections for repeated use.
The housing is molded from black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating, ensuring flame retardancy in demanding environments. The through hole mounting style allows for robust attachment to the PCB. With a 10A current rating, this shunt is suitable for power distribution and signal routing applications.
This component is part of Harwin's D3088 series and is commonly used in industrial, automotive, and consumer electronics where configuration jumpers or shorting links are required. The 12.00mm height accommodates standard PCB spacing.
2 positions (1x2).
10.16mm (0.400 inches).
10A.
Through hole.
Gold with 3.94µin (0.10µm) thickness.
Polybutylene terephthalate (PBT) with UL94 V-0 rating.
Black.
