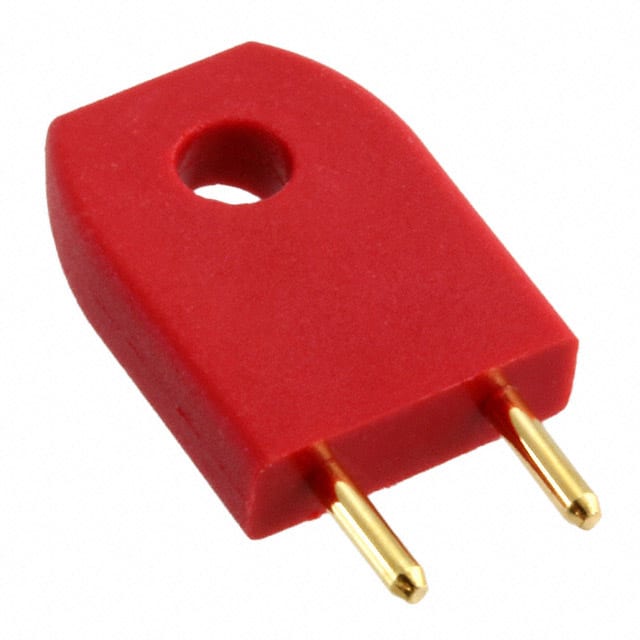

The Harwin D3086-99 is an insulated shorting link designed for use as a removable jumper in PCB applications. It features a male plug configuration with 2 positions on a 5.08mm pitch, allowing for reliable connection between adjacent header pins.
Key specifications include a 10A current rating, gold-plated contacts with a thickness of 3.94µin for low and stable resistance, and a red polybutylene terephthalate (PBT) housing that meets UL94 V-0 flammability standards. The closed top grip design facilitates easy handling and insertion.
This component is not intended for direct soldering to the PCB; it is designed to be used with mating headers or receptacles. As noted by the manufacturer, it is not recommended for RoHS/lead-free soldering processes, making it suitable for legacy or tin-lead assembly environments. The red color aids in visual identification on the board.
It has 2 positions arranged as 1 x 2.
The pitch is 5.08mm (0.200 inches).
It is rated for 10A.
The housing is made of polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating.
The contacts have a gold finish with a thickness of 3.94µin (0.10µm).
The manufacturer states it is not recommended for RoHS/lead-free soldering processes, indicating it is not intended for RoHS-compliant assembly.
The housing is red.
