| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating (Amps) | |
| Gender | |
| Height | |
| Housing Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Number of Positions or Pins (Grid) | |
| Pitch | |
| Type |

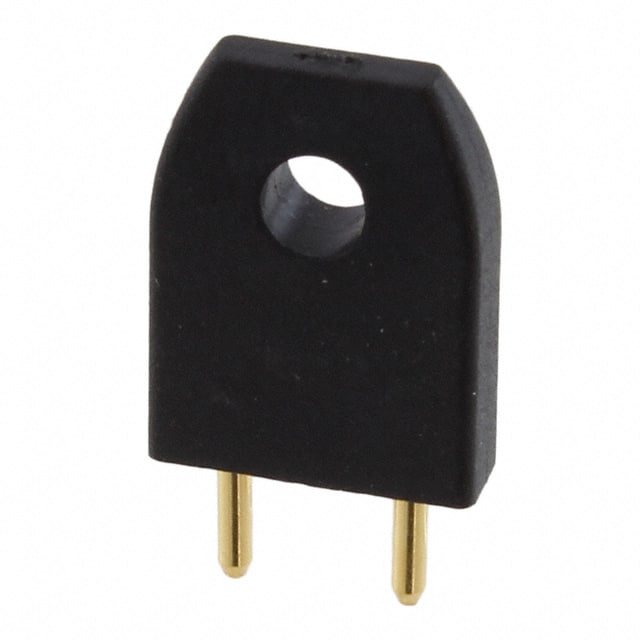

The Harwin D3086-98 is a closed top, grip type shorting plug designed for use with rectangular connector headers. It has 2 positions arranged in a single row with a 5.08mm pitch. The plug is rated for a nominal current of 10A. The housing is made of black Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating, ensuring fire resistance.
The contacts are male pins with a gold finish and a thickness of 3.94µin (0.10µm), providing corrosion resistance and reliable electrical connection. The part has a height of 12.70mm. The mounting type and termination style are not specified in the available data. This shorting plug is suitable for applications requiring a removable jumper connection on PCBs or backplanes.
2 positions (1 x 2).
5.08mm.
10A.
Gold, with a thickness of 3.94µin (0.10µm).
Polybutylene Terephthalate (PBT) with UL94 V-0 flammability rating.
12.70mm.
Listed as RoHS3 Compliant, but this is unverified based on available data.
