| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
488 pcs
|
488 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Lead Style | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

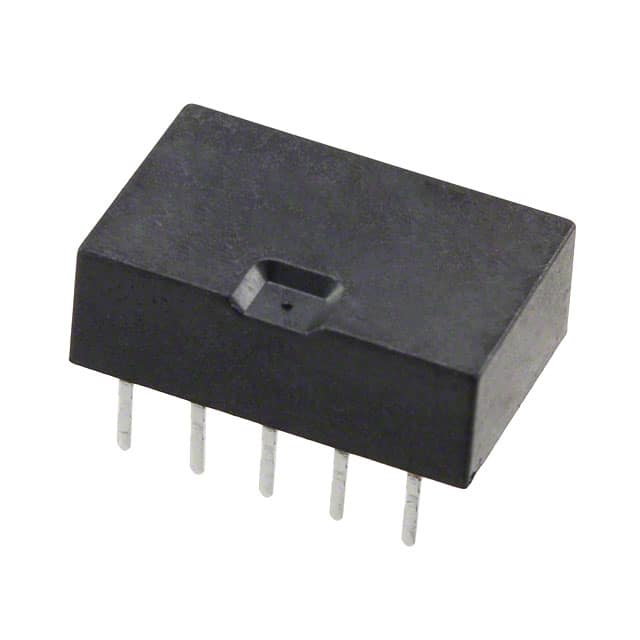

The TE Connectivity D3005 is a telecom relay designed for signal applications. It features a DPDT (2 Form C) contact configuration, capable of switching up to 2A. The relay operates with a 6VDC coil voltage and has a coil current of 23.3 mA. Its must-operate voltage is 4.2 VDC, and the must-release voltage is 0.6 VDC.
This relay is suitable for a wide range of operating temperatures, from -40°C to 85°C. It has an operate time of 4 ms and a release time of 3 ms. The switching voltage is rated up to 250VAC and 220VDC maximum. The contact material is Palladium (Pd), Ruthenium (Ru), and Gold (Au).
The D3005 is designed for through-hole mounting and uses a PC pin termination style. It is classified under RoHS3 compliance and has an MSL rating of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 6 VDC.
The contact rating is 2 A.
The operating temperature range is -40°C to 85°C.
It is mounted using the through hole method.
The contact form is DPDT (2 Form C).
