| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Ingress Protection | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Release Force | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

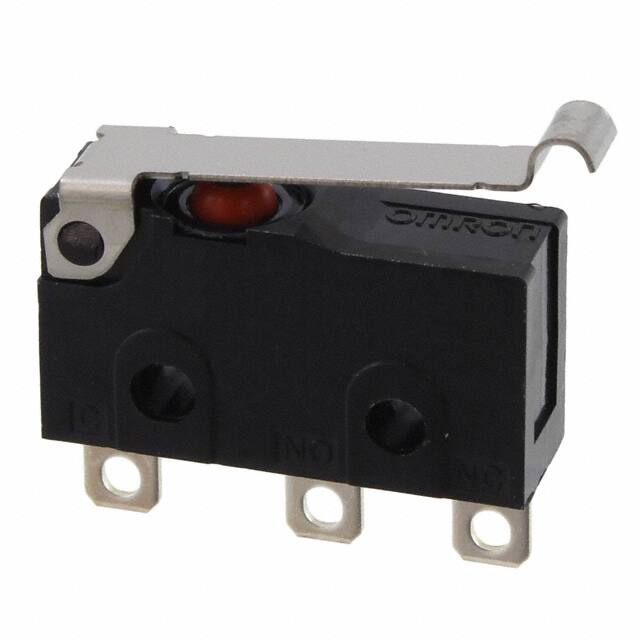

The Omron D2SW-01L3MS is a snap action switch with a Single Pole Double Throw (SPDT) circuit configuration. It is rated for a current of 100mA at 125V AC/DC, making it suitable for various control applications.
This switch features a chassis mount for secure installation and wire leads for termination. The operating temperature range is from -40°C to 85°C, providing reliability in diverse environmental conditions. It offers an electrical life of 200,000 cycles and a mechanical life of 5,000,000 cycles.
Key mechanical specifications include an operating force of 60gf, a release force of 6.118gf, an overtravel of 0.040" (1.0mm), and a differential travel of 0.031" (0.8mm). The switch also boasts an Ingress Protection rating of IP67, indicating dust-tight and waterproof capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Omron D2SW-01L3MS switch has a current rating of 100mA (AC/DC).
The D2SW-01L3MS switch is rated for 125V AC.
The D2SW-01L3MS switch has an SPDT (Single Pole Double Throw) circuit.
The operating temperature range for the D2SW-01L3MS switch is -40°C to 85°C.
The D2SW-01L3MS switch is designed for chassis mounting.
The D2SW-01L3MS switch has an IP67 ingress protection rating.
