| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
884 pcs
|
884 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Pretravel | |
| Release Force | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

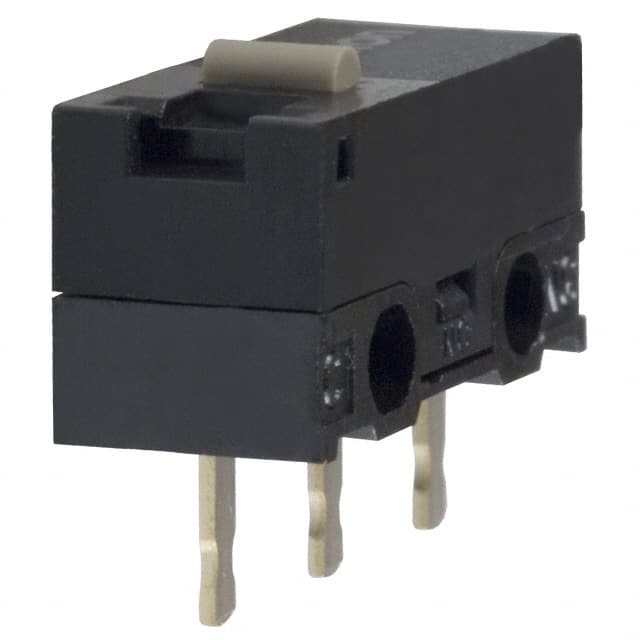

The Omron D2F-01F is a snap action switch designed for various applications requiring reliable switching. It features a Single Pole Double Throw (SPDT) circuit configuration.
This switch operates with a voltage rating of 30V and a current rating of 100mA (DC). Key mechanical specifications include an operating force of 75gf, pretravel of 0.020" (0.5mm), and overtravel of 0.010" (0.25mm). The differential travel is 0.005" (0.12mm).
Designed for through-hole mounting, the D2F-01F utilizes PC pin termination for secure connections. It has an operating temperature range of -40°C to 85°C and an ingress protection rating of IP40.
The switch is specified with RoHS3 compliance and an MSL 1 rating. Its actuator type is a round pin plunger.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 30 V.
The current rating is 100mA (DC).
It has a round pin plunger actuator.
The mounting type is through hole.
The operating temperature range is -40°C to 85°C.
The circuit type is SPDT (Single Pole Double Throw).
