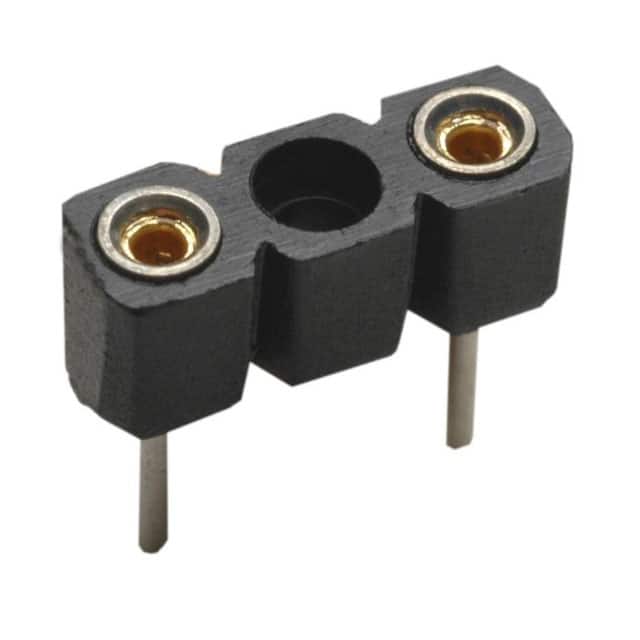

D2899-42 D2899-42 is a 3 position (1x3, 2 loaded) DIP IC socket from Harwin Inc. It features 5.08mm pitch, through hole solder termination, and tin contact finish.
Mfr Part #:

D2899-42

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
D2899-42 is a 3 position (1x3, 2 loaded) DIP IC socket from Harwin Inc. It features 5.08mm pitch, through hole solder termination, and tin contact finish.
✓ Total Stock: 598 pcs

D2899-42 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
598 pcs
On Request
598 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

D2899-42 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Contact Finish
Contact Finish Thickness
Contact Material
Features
Housing Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions or Pins (Grid)
Operating Temperature
Pitch
Tape & Reel
Termination
Type
Voltage Rating
View Similar Products (0)

D2899-42 Description

Short technical summary and product information.

The D2899-42 is a 3-position (1x3, 2 loaded) DIP IC socket from Harwin Inc., designed for through hole mounting with solder termination. It uses a closed frame housing made of glass-filled polyamide (nylon) and features beryllium copper contacts with a tin finish (flash thickness). The socket has a 5.08mm (0.200") pitch and a row spacing of 0.3" (7.62mm).



Electrical ratings include a maximum current of 3A per contact at 25°C ambient with one contact loaded, derating to 1A at 85°C. With all contacts loaded, the rating is 1.5A at 25°C and 1.25A at 85°C. Initial contact resistance is 10mΩ max, and insulation resistance is 10,000MΩ min. The socket withstands 1,000V rms dielectric strength and is rated for 100V rms/150V DC. Capacitance between contacts is 1.5pF max.



Mechanical specifications include a minimum creepage path and air gap of 0.7mm contact-to-contact. The operating temperature range is -55°C to 125°C. The socket is suitable for mating pins with a diameter of 0.40-0.56mm and can be used as a fuse holder or for other 2-tail components.

D2899-42 Quick Information

Product Type: IC Socket
Series: D2899
Canonical Name: 3 (1x3, 2 Loaded) DIP IC Socket, 0.3" (7.62mm) Row Spacing, Through Hole, Solder, Tin Contact Finish, Closed Frame
Subcategory: IC Sockets

D2899-42 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

D2899-42 Features

  • Closed frame DIP IC socket design.
  • 3 positions with 2 loaded contacts.
  • 5.08mm (0.200") pitch spacing.
  • Through hole solder termination.
  • Tin contact finish with flash thickness.

D2899-42 Applications

  • Use as a fuse holder for 2-tail components.
  • Suitable for IC sockets with 0.40-0.56mm mating pins.
  • General purpose DIP socket for prototyping.
  • Ideal for applications requiring a closed frame.

D2899-42 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the D2899-42 have?

3 positions in a 1x3 grid, with 2 contacts loaded.

What is the pitch of the D2899-42?

5.08mm (0.200") pitch.

What is the current rating of the D2899-42?

3A max per contact at 25°C ambient with one contact loaded; 1.5A max per contact with all contacts loaded. Derating to 1A and 1.25A respectively at 85°C.

What is the voltage rating of the D2899-42?

100V rms / 150V DC.

What is the mounting type of the D2899-42?

Through hole, solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact material?

Beryllium copper with tin finish (flash thickness).
