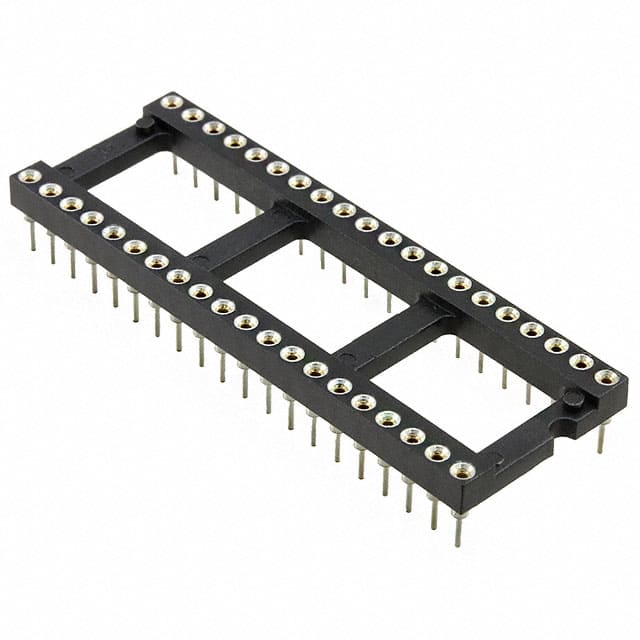

The Harwin D2840-42 is a 40-position (2x20) dual row DIP IC socket designed for through-hole mounting. It features a 2.54mm (0.100") contact pitch and 15.24mm (0.6") row spacing, making it suitable for standard 40-pin DIP packages.
The socket uses beryllium copper contacts with gold flash on the contact area and tin on the solder terminations. The housing is glass-filled thermoplastic, providing durability and high temperature resistance. The open frame design allows for airflow and inspection of solder joints.
Electrical ratings include a maximum current of 3A per contact (single contact loaded at 25°C) and a maximum voltage of 100V rms / 150V DC. Contact resistance is 10mΩ initial, and insulation resistance is 10,000MΩ minimum. The operating temperature range is -55°C to 125°C.
The D2840-42 has 40 positions arranged as 2 rows of 20 (2x20).
The contact pitch is 2.54mm (0.100") and the row spacing is 15.24mm (0.6").
The current rating is 3A maximum per contact with one contact loaded at 25°C ambient, and 1.5A per contact with all contacts loaded at 25°C ambient.
The maximum voltage rating is 100V rms / 150V DC.
The D2840-42 is a through-hole mount socket with solder terminations.
