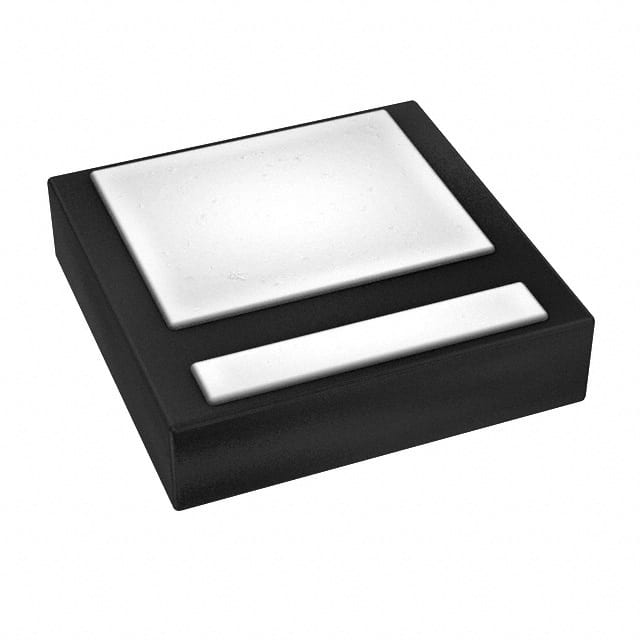

The D26V0H1U2LP20-7 is a 26V uni-directional Zener TVS diode from Diodes Incorporated designed to protect sensitive electronics from electrostatic discharge (ESD) and electrical transients.
Key electrical specifications include a reverse standoff voltage of 26V, minimum breakdown voltage of 28V, and maximum clamping voltage of 40V. The device can handle a peak pulse current of 9.5A (10/1000µs) and delivers 300W peak pulse power. It offers robust ESD protection compliant with IEC 61000-4-2, rated at ±30kV for both contact and air discharge. Maximum reverse leakage current is 100nA, and typical capacitance is 630pF at 1 MHz.
The diode is housed in a compact surface-mount U-DFN2020-2 package with a maximum height of 0.605mm, making it suitable for space-constrained portable applications such as cellular handsets, digital cameras, and MP3 players. It operates over a junction temperature range of -65°C to 150°C and has a maximum power dissipation of 500mW. The package is halogen and antimony free, RoHS3 compliant, and rated MSL Level 1 per J-STD-020.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.61 | $0.61 |
| 10+ | $0.38 | $0.38 |
| 100+ | $0.24 | $0.24 |
| 500+ | $0.18 | $0.18 |
| 1,000+ | $0.16 | $0.16 |
| 3,000+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26V
Minimum 28V
40V
9.5A at 10/1000µs
U-DFN2020-2 (surface mount)
