| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,035 pcs
|
7035 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request | |
|
2,035 pcs
|
2035 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Load Current | |
| Mounting Type |

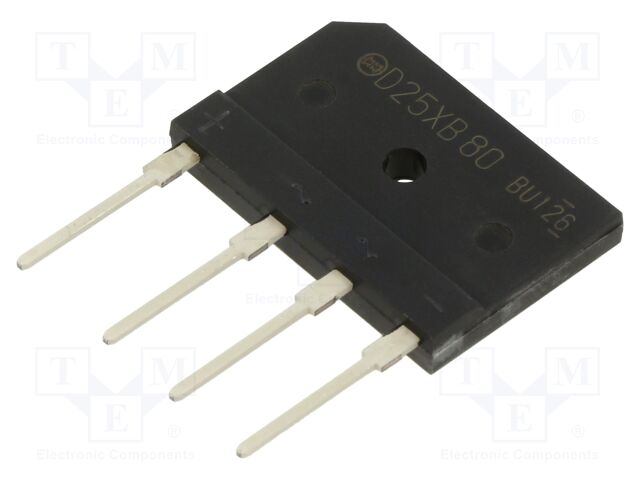

This Shindengen D25XB80-7000 is a single-phase bridge rectifier designed for general-purpose rectification applications. It features a maximum repetitive peak reverse voltage (Vrrm) of 800V and a continuous load current (If) of 25A. The maximum forward impulse current (Ifsm) is rated at 350A, providing robust performance under transient conditions.
The rectifier has a maximum forward voltage (Vf) of 1.05V at 25A. It is housed in a 5S flat case and utilizes Through-Hole (THT) mounting with flat pin leads, making it suitable for various PCB assembly processes.
The component is supplied in bulk packaging, with a standard package quantity of 250 pieces. It is identified as RoHS3 Compliant, MSL 1 Unlimited, and REACH Unaffected, though these compliance statuses are currently unverified.
This bridge rectifier is a reliable component for power supply circuits, AC-to-DC conversion, and other power electronics applications where efficient and robust rectification is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.87 | $1.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum off-state voltage (Vrrm) for the D25XB80-7000 is 800V.
The D25XB80-7000 has a continuous load current rating (If) of 25A.
The maximum forward voltage (Vf) for this bridge rectifier is 1.05V.
This bridge rectifier is designed for THT (Through-Hole) mounting.
The D25XB80-7000 comes in a 5S flat case.
