| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

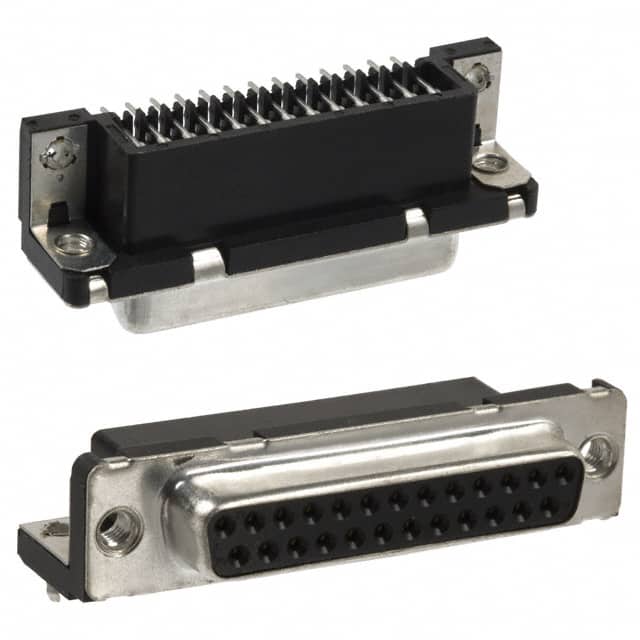

The Amphenol ICC D25S33E4GX00LF is a 25-position D-Sub receptacle connector designed for signal applications. It features 2 rows of female socket contacts with gold flash finish for reliable connectivity. The right angle through hole mounting style allows for compact PCB layouts, and the solder termination ensures secure connections. This connector is rated for 5A per contact and has a shell size of DB-25 (shell size 3). The steel shell with tin-nickel plating provides durability and EMI shielding. Additional features include board locks and mounting brackets for secure attachment to the PCB. The insulator is rated UL94 V-0 for flame retardancy. The backset spacing is 0.318 inches (8.08mm), and the flange feature includes housing/shell threads (4-40). This connector is commonly used in data communication, industrial control, and computer peripheral interfaces.
25 positions.
5A per contact.
Through hole, right angle.
Gold flash.
Shell size 3 (DB, B) corresponding to DB-25.
Yes, it features board locks and mounting brackets.
UL94 V-0.
