| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
240 pcs
|
240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

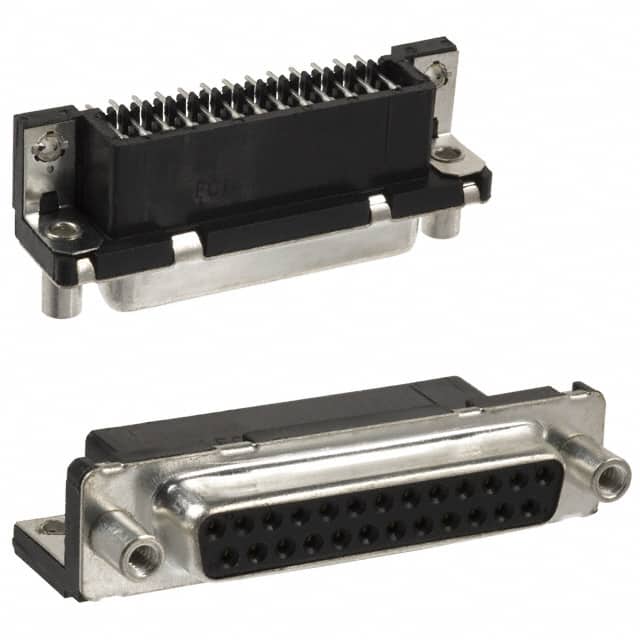

The D25S33E4GV00LF is a D-Sub receptacle connector manufactured by Amphenol ICC. This connector has 25 positions arranged in 2 rows and features female sockets. It is designed for through hole mounting with a right angle orientation, making it suitable for applications where space constraints require a compact profile.
The connector uses solder termination and includes board lock and mounting brackets for secure attachment. The contacts are signal type with a gold flash finish. The current rating is 5A per contact. The shell is made of steel with a tin-nickel plated finish. The shell size is 3 (DB, B) with a backset spacing of 0.318 inches (8.08 mm). The flange feature includes a mating side female screwlock (4-40).
The insulator material has a flammability rating of UL94 V-0. The connector is RoHS3 compliant and REACH unaffected, with an MSL level of 1 (unlimited). These compliance statements are based on existing data and should be verified with the manufacturer for accuracy.
25 positions.
5A per contact.
Through hole, right angle.
D-Sub.
Gold flash.
Steel with tin-nickel plated finish.
According to existing data, it is RoHS3 compliant, but this has not been verified.
