| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
240 pcs
|
240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

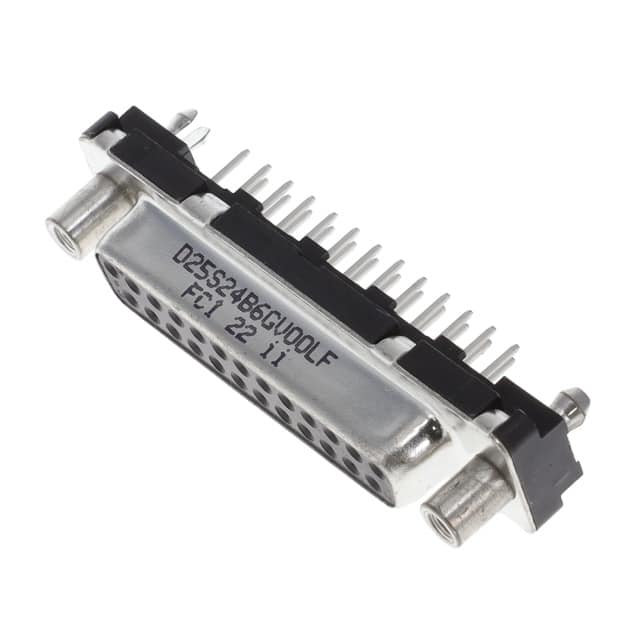

The D25S24B6GV00LF is a D-Sub receptacle connector from Amphenol ICC, featuring 25 positions arranged in 2 rows of female socket contacts. It is designed for through hole mounting and solder termination, making it suitable for permanent PCB attachment. The contacts are gold-plated with a thickness of 30µin (0.76µm), providing reliable signal integrity and corrosion resistance. The shell is constructed from steel with a tin-nickel plating, offering durability and shielding. The connector includes a board lock feature for secure mechanical retention and a mating side flange with female screwlocks (4-40) for robust connection. The insulator material has a UL94 V-0 flammability rating, ensuring compliance with fire safety standards. With a current rating of 5A per contact, this connector is suitable for signal and low-power applications. The shell size is 3 (DB, B), conforming to standard D-Sub dimensions.
It has 25 positions arranged in 2 rows.
The current rating is 5A per contact.
It uses through hole mounting with solder termination.
The contacts are gold-plated with a thickness of 30µin (0.76µm).
The shell is made of steel with a tin-nickel plating.
Yes, it has a mating side flange with female screwlocks (4-40).
Yes, it includes a board lock feature for secure PCB mounting.
