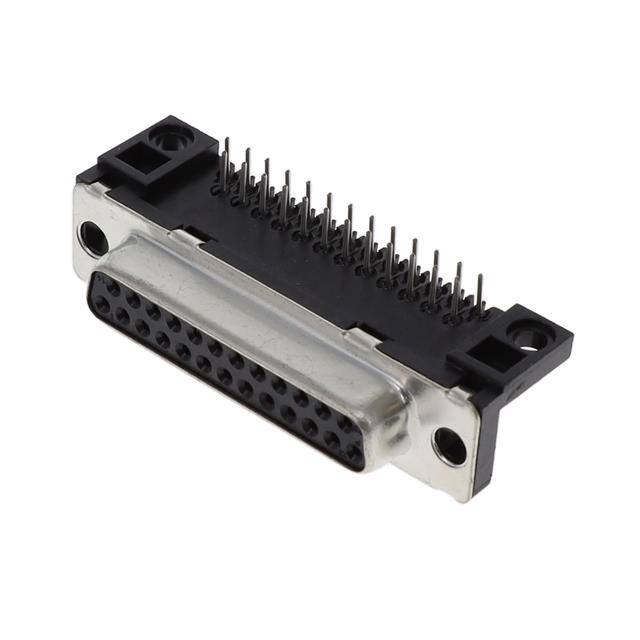

D25S13A4PA00LF Amphenol ICC D25S13A4PA00LF is a 25-position D-Sub receptacle connector with female sockets, through hole right-angle mounting, and solder termination.
Mfr Part #:

D25S13A4PA00LF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Amphenol ICC D25S13A4PA00LF is a 25-position D-Sub receptacle connector with female sockets, through hole right-angle mounting, and solder termination.
✓ Total Stock: 45 pcs

D25S13A4PA00LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
45 pcs
On Request
45 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

D25S13A4PA00LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Backset Spacing
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Current Rating (Amps)
Flange Feature
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Rows
SVHC Present
Shell Material, Finish
Shell Size, Connector Layout
Tape & Reel
Termination
View Similar Products (0)

D25S13A4PA00LF Description

Short technical summary and product information.

The Amphenol ICC D25S13A4PA00LF is a D-Sub receptacle connector featuring 25 positions arranged in 2 rows. It uses female socket contacts with a gold flash finish for reliable signal transmission. The connector is designed for through hole right-angle mounting and solder termination, making it suitable for PCB applications where space constraints require a right-angle interface.



The shell is constructed from steel with a tin-nickel plated finish, providing durability and EMI shielding. The housing features an unthreaded flange for panel mounting. The connector is rated for 5A per contact and has a UL94 V-0 flammability rating for the insulating material. The backset spacing is 0.409 inches (10.40 mm).

D25S13A4PA00LF Quick Information

Product Type: D-Sub Connector Assembly
Canonical Name: D-Sub Receptacle Connector, 25 Position, Female Sockets, Through Hole Right Angle, Solder Termination
Subcategory: D-Sub Connector Assemblies

D25S13A4PA00LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

D25S13A4PA00LF Features

  • 25-position D-Sub receptacle connector.
  • Through hole right-angle mounting.
  • Gold flash contact finish.
  • Rated for 5A per contact.
  • Steel shell with tin-nickel plating.

D25S13A4PA00LF Applications

  • Used in industrial control interfaces.
  • Suitable for data communication equipment.
  • Ideal for PCB right-angle connections.
  • Common in computer peripheral connectors.

D25S13A4PA00LF FAQs

5 frequently asked questions generated from this part’s specifications.
What is the connector type of D25S13A4PA00LF?

It is a D-Sub receptacle with female sockets.

How many positions does D25S13A4PA00LF have?

It has 25 positions arranged in 2 rows.

What is the mounting type for D25S13A4PA00LF?

It is through hole, right-angle mounting with solder termination.

What is the current rating of D25S13A4PA00LF?

It is rated for 5A per contact.

What is the shell size of D25S13A4PA00LF?

The shell size is 3 (DB, B).
