| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

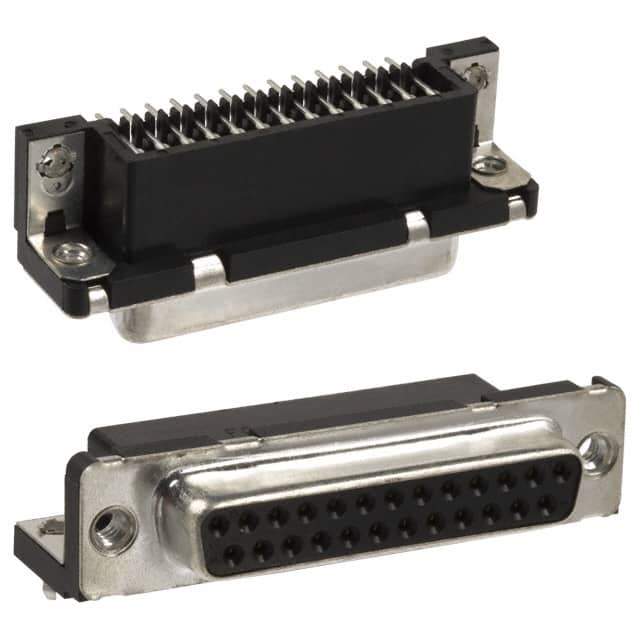

The Amphenol ICC D25S13A4GX00LF is a D-Sub receptacle connector featuring 25 female socket contacts arranged in 2 rows. It is designed for through hole, right angle mounting and uses solder termination for reliable PCB attachment.
The connector has a steel shell with tin-nickel plating and a shell size of 3 (DB, B). It includes board lock and mounting bracket features for secure mechanical retention. The backset spacing is 0.409 inches (10.40 mm).
Each contact is rated for 5A and features a gold flash finish. The insulator material has a UL94 V-0 flammability rating. This connector is suitable for signal applications in various electronic assemblies.
Receptacle, Female Sockets; D-Sub style.
25 positions arranged in 2 rows.
Through Hole, Right Angle.
5A per contact.
Gold flash.
Steel, Tin-Nickel Plated.
UL94 V-0.
