| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,740 pcs
|
6740 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

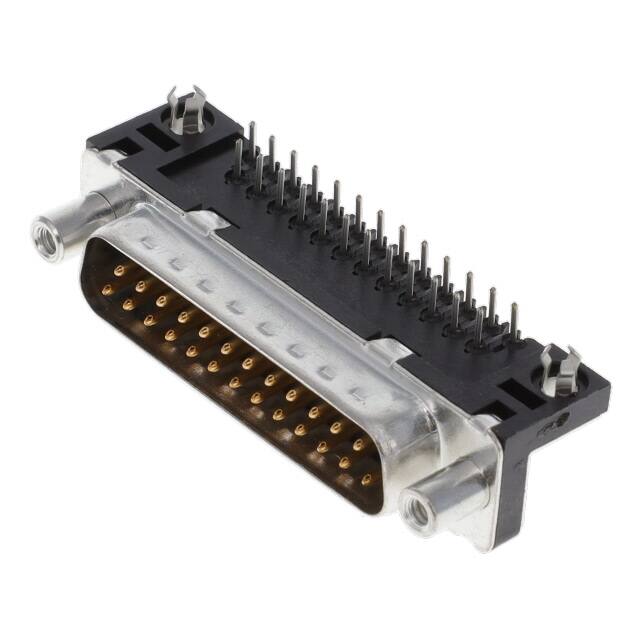

This D-Sub connector assembly from Amphenol ICC is a 25-position male plug with right angle through-hole mounting and solder termination. The connector features 2 rows of signal contacts, shell size 3 (DB, B), and is rated for 5A per contact. The contact finish is gold or gold GXT with 30µin thickness, providing reliable signal integrity. The shell is steel with tin-nickel plating, and the flange includes mating side female screwlocks (4-40). Backset spacing is 0.318 inches. Additional features include board lock, grounding indents, and mounting brackets. The insulator material has a UL94 V-0 flammability rating, suitable for industrial and commercial applications.
This connector has 25 positions.
The current rating is 5A per contact.
The mounting type is through hole, right angle.
The contact finish is gold or gold, GXT with 30µin thickness.
Shell size is 3 (DB, B).
The material flammability rating is UL94 V-0.
