| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Industrial Grade | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

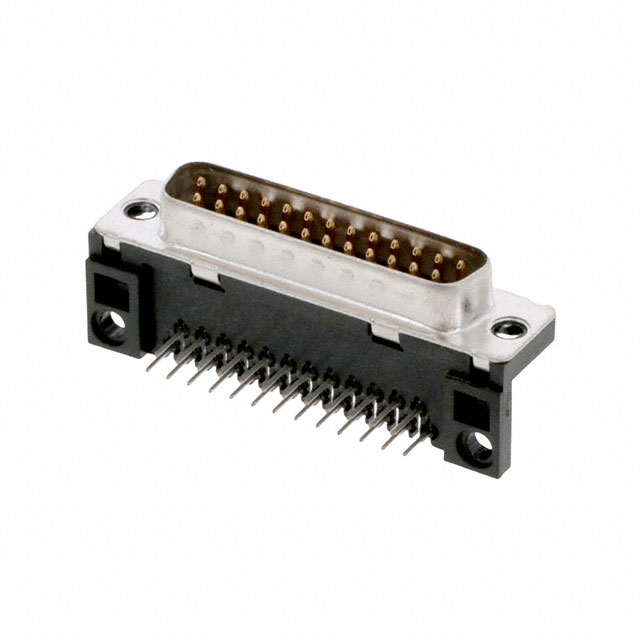

The D25P13A4PA00LF is a D-Sub plug connector from Amphenol ICC. It features 25 positions arranged in 2 rows, with male pins employing a through hole right-angle mounting style for solder termination. This connector is designed for signal contact applications.
The shell is made of steel with a tin-nickel plating, providing durability and EMI shielding. The connector includes grounding indents for enhanced grounding. The housing material meets UL94 V-0 flammability rating. The backset spacing is 0.409 inches (10.40mm). The contact finish is gold with flash thickness.
Each contact is rated for 5A current. The flange feature is housing/shell unthreaded. The connector follows standard D-Sub layout shell size 3 (DB, B). The part is listed as RoHS3 compliant and REACH unaffected, though these claims are unverified.
Ideal for computing, industrial control, and instrumentation requiring reliable signal connections in a right-angle configuration.
25 positions.
5A per contact.
Through hole, right angle.
Steel, tin-nickel plated.
Gold flash.
UL94 V-0.
